Keysight Technologies 34980A Data Acquisition System

Keysight Technologies 34980A Data Acquisition System features bandwidths up to 45MHz, high voltage up to 300V, 1A, and 1-, 2-, or 4-wire configurations. The 34980A System offers a self-guiding front panel to configure, troubleshoot, or view data and heavy-duty cabling and connection options. This module handles system switching up to 26.5GHz, provides basic measurements and system control, and offers digital I/O with pattern capabilities and analog outputs with basic waveforms. Keysight 34980A Data Acquisition System can accept up to 8 modules to allow the creation of a custom bench data acquisition system.

Features

Web browser interface shows settings at a glance and provides remote access and control when using a browser that supports Java applets
Self-guiding front panel to configure, troubleshoot or view data
Low EMI and efficient system cooling
Heavy-duty cabling and connection options

Flexible rack mounting options
Relay counters help predict end-of-life
In-rack calibration for reduced maintenance time
DMM measurement accuracies include the switch for simple calculations

Specifications

Eight-slot mainframe, choice of 21-plug-in modules
Built-in DMM with 6½ digits (22 bits) of resolution
Scan rates of up to 1000 channels/second
Standard LAN, USB, and GPIB connectivity to PC, LXI compliant

Easy remote access with built-in Web interface
Priced up to 40% less than comparable module solutions in VXI or PXI
Up to 560 2-wire mux or 4096 matrix cross-points in one mainframe

Keysight Technologies 34980A Data Acquisition System

Features

Specifications

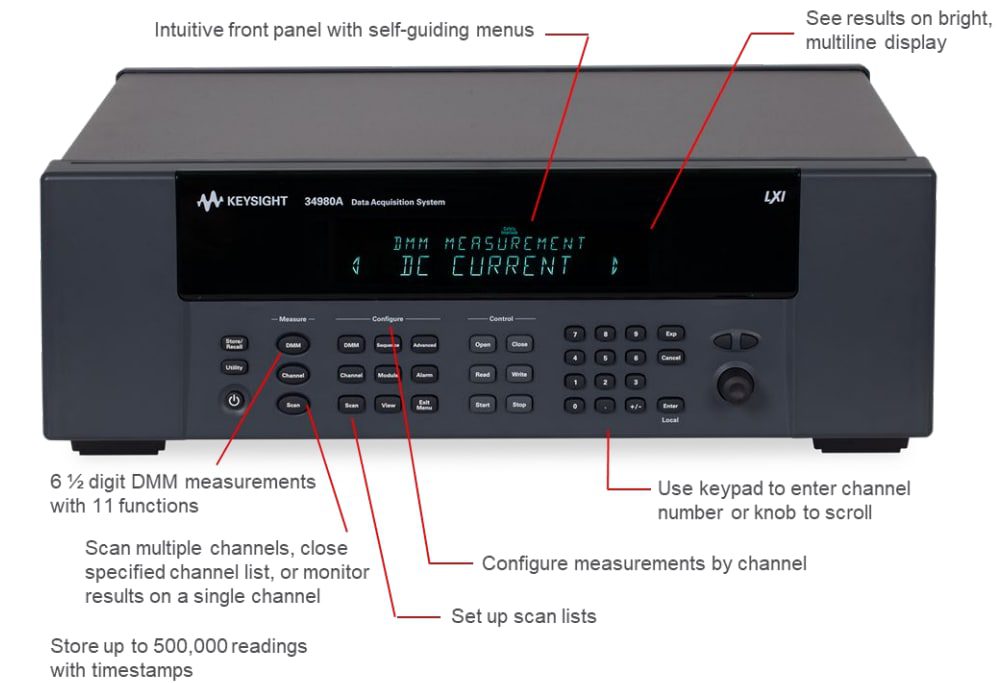

Front Controls/Connections

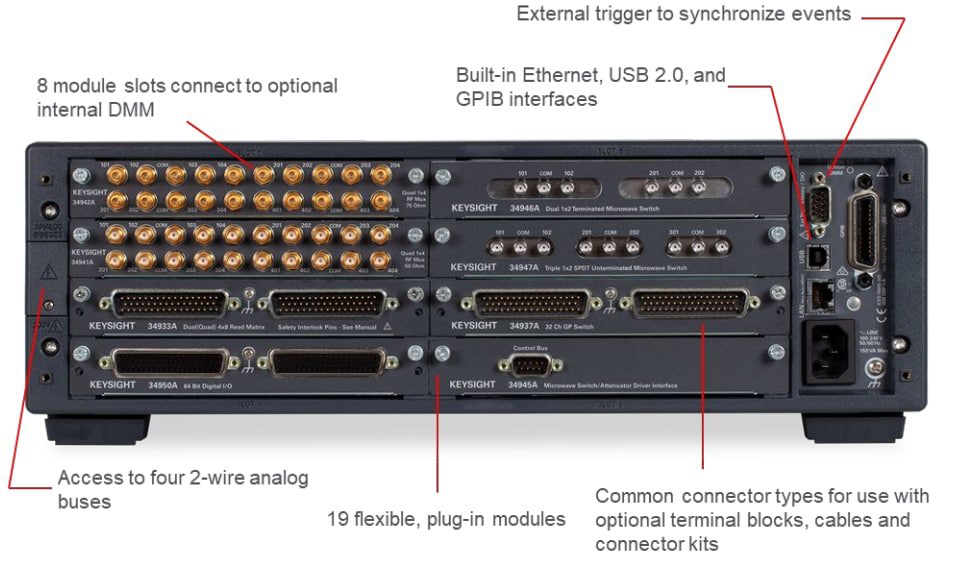

Back Controls/Connections
