Kamaya Fixed Thick Film Resistors

Kamaya Fixed Thick Film Resistors feature rectangular type, high power, and AEC-Q200 qualified. These resistor delivers 50mΩ maximum resistance and up to 2A rated current. The thick film resistors operate from -55°C to 155°C temperature range and are RoHS compliant. These fixed thick film resistors are halogen and antimony-free.

Features

791-RMCH06-4R99FPA auto high power series resistors
Rectangular type
50mΩ maximum resistance
Up to 2A-rated current
High reliability and stability ±1%
Sulfuration resistant
Automotive AEC Q-200 & Military MIL-STD compliant

100% CCD inspection
RoHS 2 compliant with exemption 7C-I and halogen-free products
Anti-sulfuration ASTM B-809 60℃ 500hrs
-55°C to 155°C operating temperature range
RoHS compliant
Halogen and antimony-free

Applications

Automotive
Consumer electrical equipment EDP

Computer
Telecom

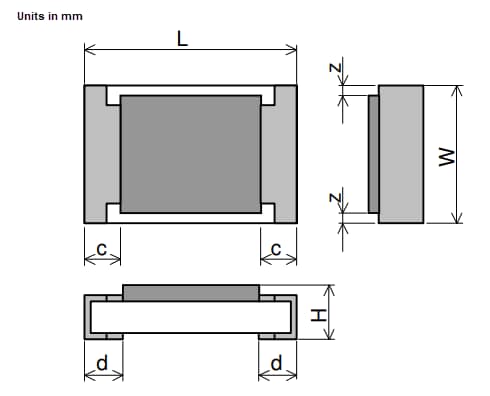

Dimension Diagram

Mechanical Drawing - Kamaya Fixed Thick Film Resistors

Kamaya Fixed Thick Film Resistors
