Ka-Ro Electronics QSRZ Computer-on-Modules

Ka-Ro Electronics QSRZ Computer-on-Modules offer a Renesas RZ/G2L Dual 1.2GHz Arm® Cortex®-A55 200MHz Arm Cortex-M33 processor. the devices provide a 512MB (QSRZ-G2L1) or 1GB (QSRZ-G2L0) DDR3L SDRAM. The QSRZ Computer-on-Modules delivers a -40°C to 85°C industrial temperature in a 27mm square QFN type lead style package.

Features

Solder-down version
27mm square
2.3mm total height
QFN type lead style
- 1mm pitch
- 100 pads
- Thermal pad

Visual solder joint inspection possible after soldering
Single-sided assembly
High-speed design compliant
3.3V power supply

Specifications

RENESAS RZ/G2L Dual 1.2GHz Arm® Cortex®-A55 200MHz Arm® Cortex®-M33
512MB (QSRZ-G2L1) or 1GB (QSRZ-G2L0) DDR3L SDRAM
4GB eMMC
-40°C to 85°C Industrial temperature

24-bit RGB MIPI® DSI (2-lanes) Interfaces
500MHz Arm® Mali™-G31 H.264 video codec processor
Connectivity
- Gb Ethernet, USB2.0, eMMC/SD
- UART, I²C, SPI, PWM, SAI, CAN

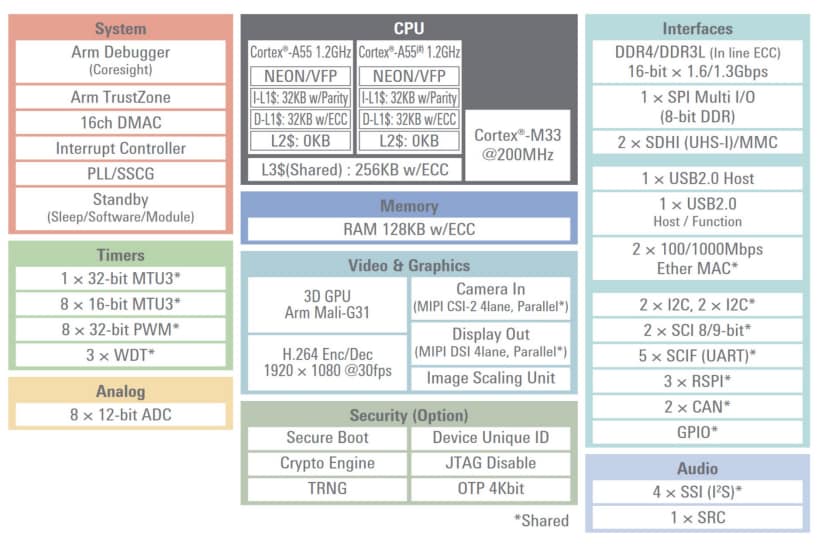

Block Diagram

Block Diagram - Ka-Ro Electronics QSRZ Computer-on-Modules

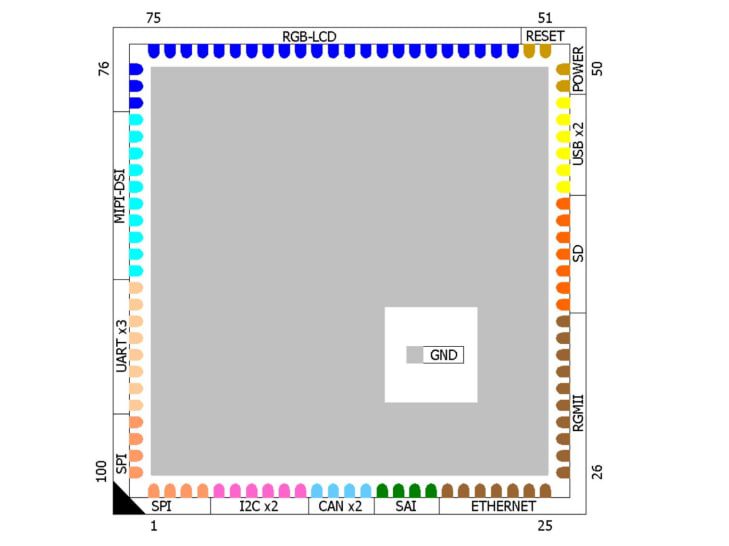

Standard Contact Assignments

Ka-Ro Electronics QSRZ Computer-on-Modules

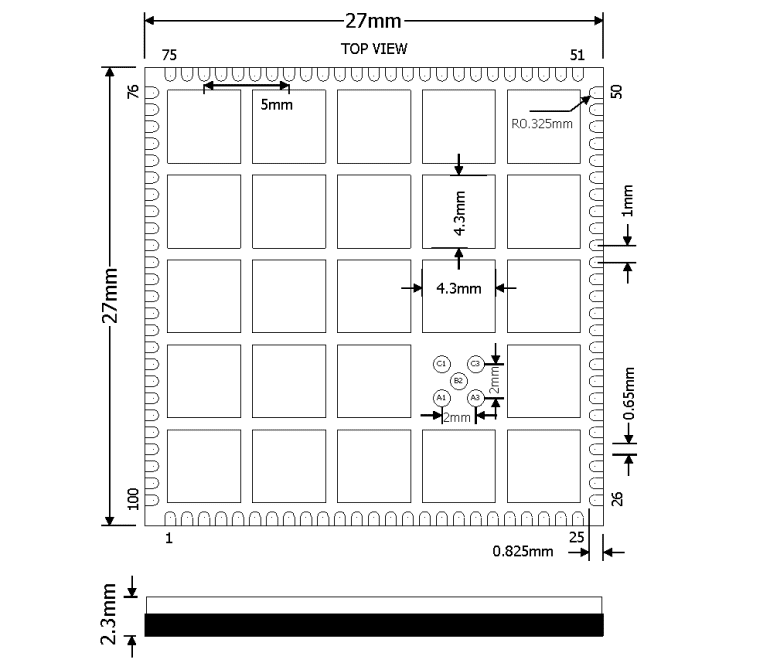

Dimensions mm

Ka-Ro Electronics QSRZ Computer-on-Modules
