JST Automotive Connectors ULH SMT Wire-to-Board Crimp-Style Connectors

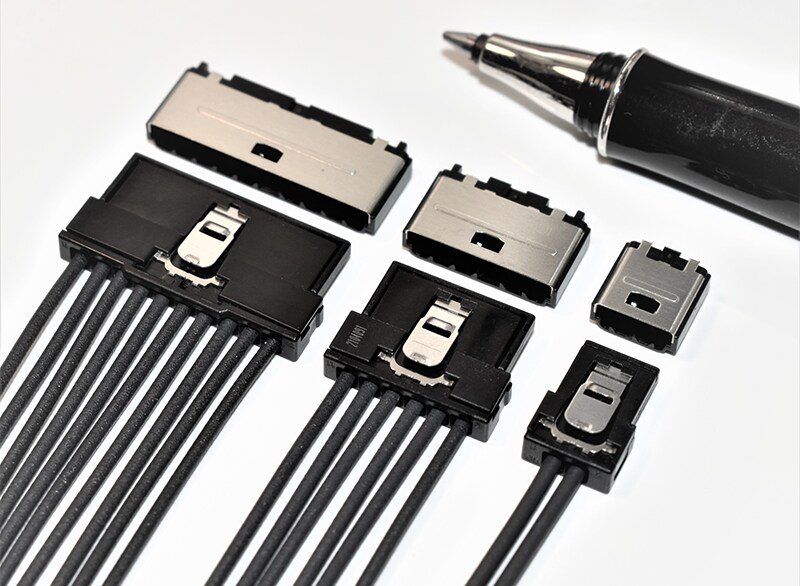

JST Automotive Connectors ULH SMT Wire-to-Board Crimp-Style Connectors conform to USCAR-2 and LV214 automotive standards despite a low 3.5mm height. The ULH connectors are available in 2, 4, 6, 8, and 10 circuits, male or female variants, and require a female cover to keep the TPA in place. Features include 5A_AC/DC current rating, 100V_AC/DC operating voltage, and 14.1mm mating length within temperatures up to +125°C.

Features

Conforms to USCAR-2 and LV214 automotive standards
Low height (3.5mm) and short mating length (14.1mm) despite the crimped specification
Space-saving, crimp termination design

Maintains electrical and mechanical properties at temperatures up to +125°C
Pollution degree 2
UL 94V-0 and Halogen-free

Specifications

2-, 4-, 6-, 8-, and 10-circuit options
5A_AC/DC current rating
100V_AC/DC operating voltage
22AWG applicable wire, ⌀1.5mm maximum coating O.D.
10mΩ maximum initial contact resistance

100MΩ minimum insulation resistance
1000V_AC withstand voltage for 1 minute
110N minimum locking force
-40°C to +125°C temperature range
