JAE Electronics WP66DK Board to Board Connectors

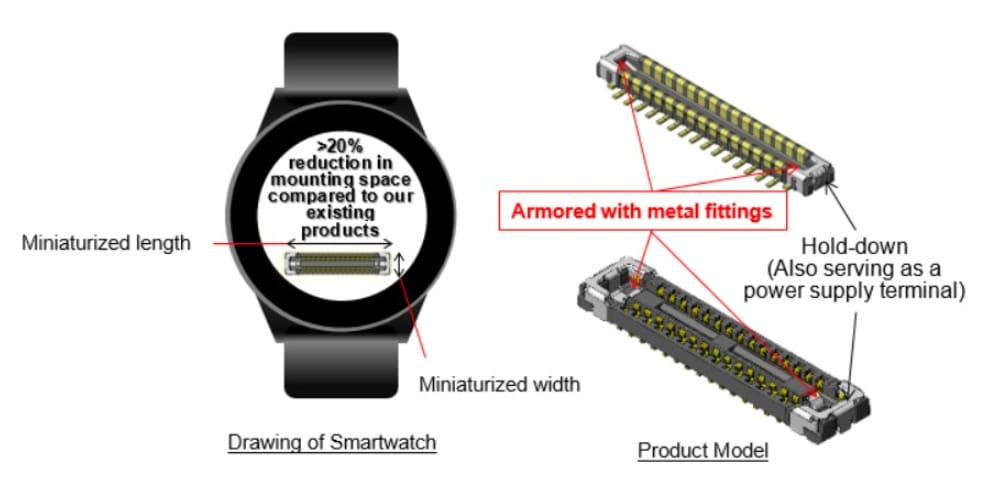

JAE Electronics WP66DK Board to Board Connectors offer an extremely compact size with a mated width of only 1.6mm, and mated height of 0.6mm. WP66DK connectors feature a robust design with metal fitting that prevents damage to the internal insulator surfaces during mating. The standard multifunction hold-down structure allows these connectors to be used as a power supply terminal to reduce total pin counts. These connectors have an insulator with heat resistant plastic construction and copper alloy contacts. JAE Electronics WP66DK Board to Board Connectors are ideal for smartwatches, smartphones, wearable devices, and digital cameras.

Features

Two hold-downs for power supply
Hold-down structure for added protection
Robust design with metal fitting
Improved workability

Highly reliable 2-point contact structure
Nickel barrier on contact prevents solder wicking
Supports MIPI, USB3.1, Gen2, and PCIe Gen3 transmission

Applications

Smartwatches
Smartphones
Wearable devices
Tablet PCs

Notebook PCs
Digital cameras
VR/AR headsets
Small portable devices

Specifications

0.35mm pitch
2 rows
0.6mm stacking height
1.6mm width
6, 8, and 30 positions available

250V_AC withstanding voltage
100MΩ insulation resistance
30 mating cycles
-40°C to +85°C operating temperature range
