JAE Electronics MX81 Automotive Connectors

JAE Electronics MX81 Automotive Connectors are unsealed compact connectors with the same crimp socket terminals as the MX80 sealed connectors. These connectors support a wide range of wire sizes (0.13mm² to 1mm²) and over 10A high current carrying capacity. The MX81 automotive connectors are tested to USCAR-2 and LV214 specifications to ensure reliability in high-vibration environments. These connectors are used in Electronic Control Units (ECUs), sensors, lighting, and other general automotive applications.

The MX81 connectors are compatible with 2.54mm pitch pin contacts. These connectors feature a 500V AC (1 minute) dielectric withstanding voltage, ISO/JASO/EWCAP/VDA standard 0.64mm tab size, and -40°C to 125°C operating temperature range.

Features

ISO/JASO/EWCAP/VDA standard 0.64mm tab size
Socket contacts are the same as the sealed MX80 connectors
Compatible with 2.54mm pitch pin contacts and small size

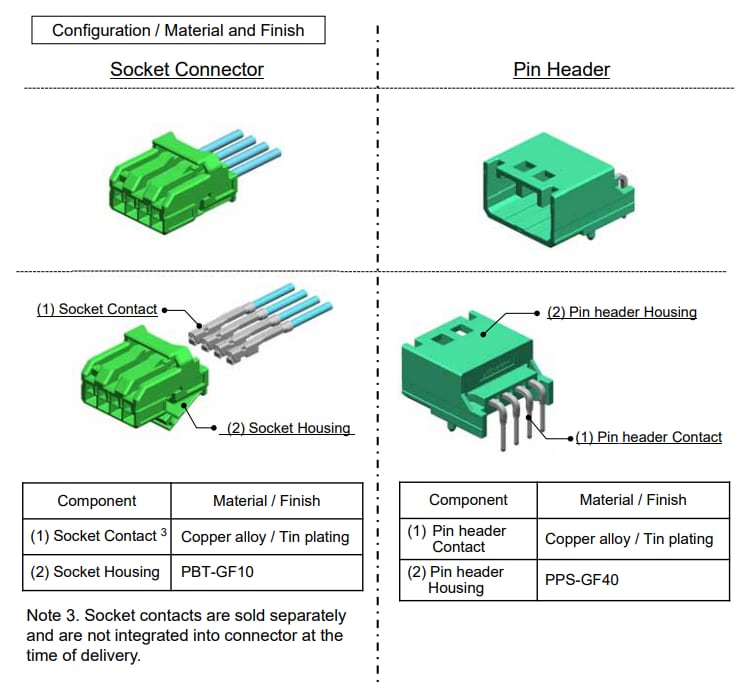

Socket housing is a one-piece type with a hinged retainer
Pin header is through-hole reflow compatible, and the housings use UL 94V-0 rated material
Multiple colored key codes are available
Small size

500V AC (1 minute) dielectric withstanding voltage
USCAR-2 tested
-40°C to 125°C operating temperature range
Applicable cable:
- 0.13mm² to 1mm² nominal cross-section
- FLRY-A, FLRY-B, AESSX, and FLCUSNRY recommended cable types

Applications

Electronic Control Units (ECUs)
Sensors

Lighting
Other general automotive
