IXYS X3-Class HiPerFET™ Power MOSFETs

IXYS X3-Class HiPerFET™ Power MOSFETs are N-channel, enhancement mode, avalanche-rated MOSFETs. The X3-Class provides high power density and is easy to mount, all in a space-saving package. The IXYS X3-Class MOSFETs are ideal for switch-mode and resonant-mode power supplies.

Features

International standard package
Low R_DS(ON) and Q_G

Avalanche rated
Low package inductance

Applications

Switch-mode and resonant-mode power supplies
DC-DC converters
PFC circuits

AC and DC motor drives
Robotics and servo controls

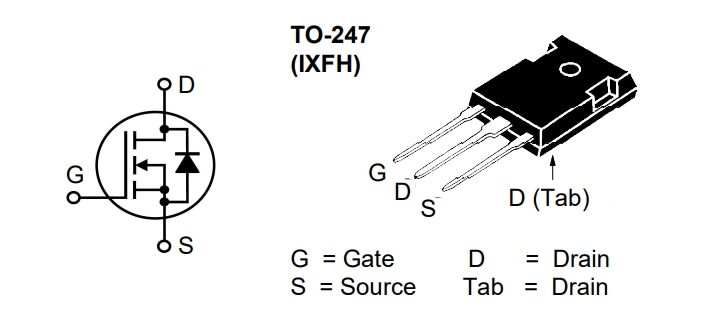

TO-247 (IXFH) Package Style

IXYS X3-Class HiPerFET™ Power MOSFETs

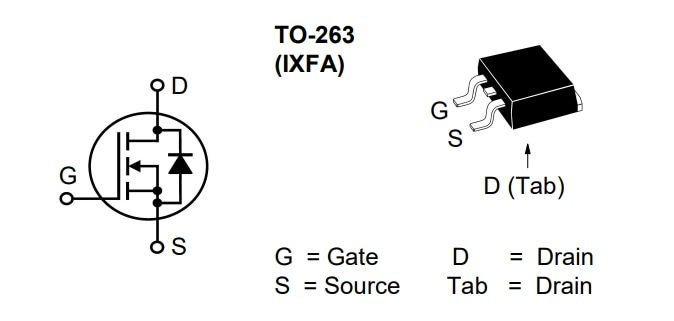

TO-263 (IXFA) Package Style

IXYS X3-Class HiPerFET™ Power MOSFETs
