IXYS S802xSx EV Series 1.5A Sensitive SCRs

IXYS S802xSx EV Series 1.5A Sensitive SCRs deliver a high static dv/dt with a low turn-off (t_q) time. The S802xSx EV SCRs are intended for GFCI (Ground Fault Circuit Interrupter) and AFCI (Arc Fault Circuit Interrupter), RCD (Residual Current Device), and RCBO (Residual Current Circuit Breaker with Overload Protection) applications. The SCR junctions are glass-passivated to ensure long-term reliability and parametric stability.

Features

Surge current capability up to 24A
Blocking voltage (V_DRM/V_RRM) capability up to 800V
Non-repetitive direct surge peak off-state voltage (V_DSM) up to 1250V
Non-repetitive reverse surge peak off-state voltage (V_RSM) up to 900V

High dv/dt noise immunity
Improved turn-off time ₍t_q)
Sensitive gate for direct microprocessor interface
Halogen-free and RoHS compliant

Applications

GFCI
AFCI

RCD
RCBO

Specifications

1.5A I_T(RMS)
800V V_DRM / V_RRM
1250V V_DSM (t_p = 50µs)

900V V_RSM (t_p = 50µs)
20µA to 100µA I_GT

IXYS S802xSx EV Series 1.5A Sensitive SCRs

Features

Applications

Specifications

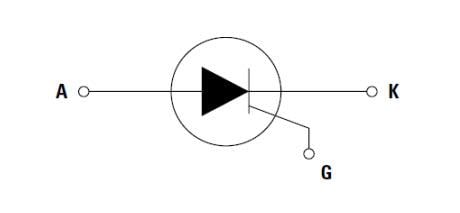

Schematic

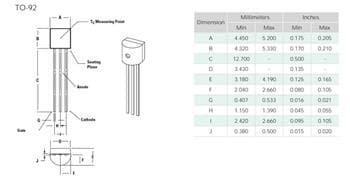

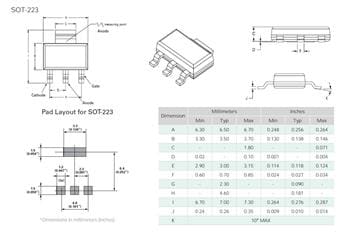

Package Dimensions
