IXYS MPA 95-06DA FRED Modules

IXYS MPA 95-06DA Fast Recovery Epitaxial Diode (FRED) Modules feature planar passivated chips and low switching loss for high-frequency switching devices. The modules offer a high-reliability circuit operation, soft recovery behavior, and low noise switching. The FRED modules operate with a 600V_RSM max repetitive and non-repetitive reverse blocking voltage and a 200A RMS forward current rating. The IXYS MPA 95-06DA FRED Modules are RoHS compliant and ideal for free-wheeling diodes in converters, motor control circuits, inductive heating/melting, uninterruptible power supplies (UPS), ultrasonic cleaners, and ultrasonic welding applications.

Features

Planar passivated chips
Low switching losses
Soft recovery behavior
High-reliability circuit operation

Low voltage peaks for reduced protection circuits
Low noise switching
Low losses
RoHS compliant

Applications

Antiparallel diode for high-frequency switching devices
Free-wheeling diode in converters
Motor control circuits

Inductive heating and melting
Ultrasonic cleaners and welders
UPS

Specifications

600V_RMS max repetitive and non-repetitive reverse blocking voltage
200A RMS forward current
95A average forward current

1.3mA to 5mA reverse current range
1.22V to 1.73V forward voltage range
-40°C to +125°C operation and storage temperature range

IXYS MPA 95-06DA FRED Modules

Features

Applications

Specifications

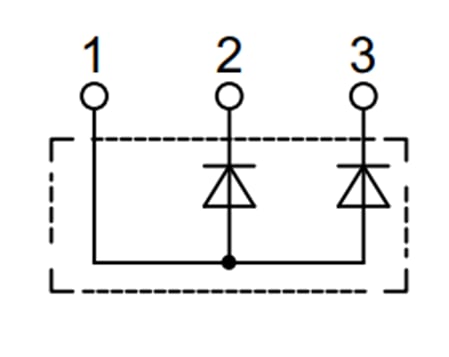

Application Circuit Diagram

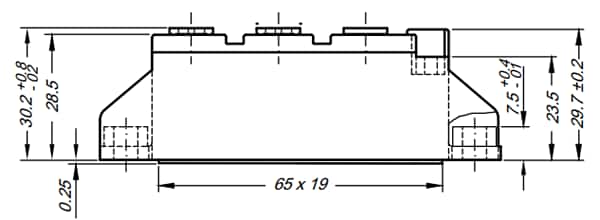

DImensions (mm)
