iWave Systems iW-RainboW-G57M® Versal AI Edge/Prime SOM

iWave Systems iW-RainboW-G57M^® Versal AI Edge/Prime System on Module (SOM) is based on the AMD series and is designed to power AI applications from the edge to the endpoint. This module features a dual-core Arm^® Cortex^®-A72 Core and dual-core Cortex-R5F core and is compatible with an extensive series of Xilinx chips. The iW-RainboW-G57M SOM is integrated with up to 4GB LPDDR4 RAM, 16GB eMMC, and 256MB QSPI flash. This module includes two high-speed expansion connectors and 122 user-configurable IOs, enabling a wide range of user interfaces. The iW-RainboW-G57M Versal AI Edge/Prime SOM provides Edge AI solutions for Advanced Driver-Assistance Systems (ADAS), robotics, medical imaging, LiDAR, and radar applications.

Features

Industrial-grade SOM
High AI inference performance
5V through B2B connector2 power input
SFVA784 package

-40°C to 85°C operating temperature range
50mm x 60mm x 4.8mm form factor
Product longevity of 10 to 15 years
REACH and RoHS 3 compliant

Specifications

SoC:
- Xilinx Versal AI Edge/Prime
- Pin compatible with Xilinx VE2302 / VE2202 / VE2102 / VE2002 / VM1102 devices
- Dual ARM Cortex-A72 core processor
- Dual Core ARM Cortex-R5F
- Up to 328K/150K logic cells
- GTYP transceivers x 8 @32Gbps
- 39LVDS pairs and 20SE PL IOs
PMIC:
- Dialog’s DA9062 PMIC with RTC
6-bit clock synthesizer
Memory interfaces:
- 64-bit LPDDR4 from PL
- 256MB QSPI flash
- 16GB eMMC flash
Board to board connector1 interfaces (240pin):
- From PL block:
  - 27LVDS/54SE IOs from BANK 703
  - 12LVDS/24SE IOs from BANK 702
  - 20SE IOs from BANK 302

Board to board connector2 interfaces (240pin):
- From PL block:
  - 8 x GTY high-speed transceivers (up to 32Gbps)
- From PS block:
  - 1 x GEM1 RGMII
  - 1 x USB 2.0
  - 1 x SD1
  - 1 x Debug UART
  - 1 x PMC I₂C
  - Debug UART
  - 1 x SPI1(3CS)
  - 1 x CAN FD
  - JTAG
10/100/1000 Ethernet PHY
USB 2.0 transceiver PHY
FAN header

iWave Systems iW-RainboW-G57M® Versal AI Edge/Prime SOM

Features

Specifications

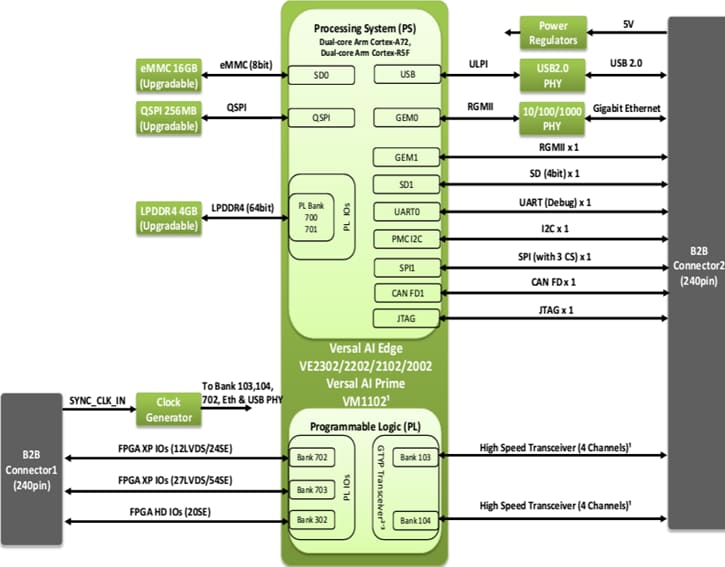

Versal AI Edge/Prime SOM Block Diagram
