iWave Systems iW-RainboW-G46M System-On-Module

iWave Systems iW-RainboW-G46M System-On-Module (SoM) is an i.MX 8XLite SoC-based LGA module designed per the Open Standard Module™ (OSM) specification. This module is suitable for automotive applications, telematics, V2X communications, and building control and robotics requiring Time-Sensitive Networking (TSN) Ethernet or Controller Area Network (CAN). The iW-RainboW-G46M module integrates NXP’s i.MX 8XLite offerings dual/solo Cortex A35 @1.2GHz, advanced multicore processing with V2X acceleration supported by Arm cores.

Features

AEC-Q104 qualified
Supports Cortex-A35 cores
Supports 1 x 1Gb Ethernet with AVB
i.MX 8XLite dual/solo with 64-bit ARMv8 architecture

10+ years of product longevity program
OSM v1.0 size-SE LGA module with 30mm x 30mm form factor

Specifications

SoC:
- i.MX 8XLite dual:
  - 2 X Cortex – A35 and 1 X Cortex – M4F
- i.MX 8XLite solo:
  - 1 X Cortex – A35 and 1 X Cortex – M4F
OSM LGA features:
- RGMII x 2
- USB 2.0 OTG x 1
- USB 2.0 HOST x 1
- PCIe x 1
- CAN x 2
- UART x 3 (1 is optional)
- PCIe x 1
- I²S x 1
- CAN x 2
- UART x 3 (1 is optional)
- 18-bit RGB
- SPI x 1
- I²C x 2
- JTAG x 1
- GPIOs

Memory and storage:
- LPDDR4 – 2Gb (expandable)
- eMMC flash – 8Gb (expandable)
OS support:
- Linux 5.4.24 (or higher)
- Android 11 (or higher)
Power input:
- 5V, 2.5A through OSM LGA
Form factor
- 30mm x 30mm (size SE)

iWave Systems iW-RainboW-G46M System-On-Module

Features

Specifications

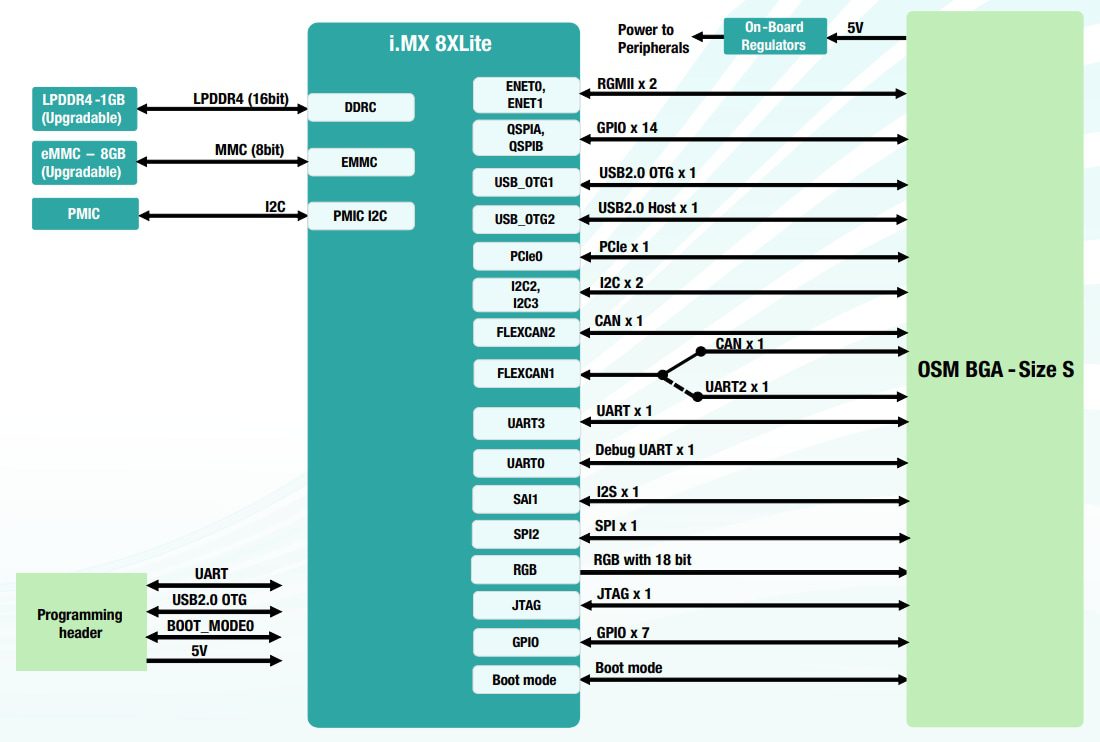

i.MX 8XLite based OSM Block Diagram
