IoTize TapNLink NFC Module

IoTize TapNLink NFC Module is a complete solution for instant integration of wireless connectivity that links electronics to mobile devices and the Cloud. This solution can add network connectivity without redesigning existing systems or recoding firmware. It supports integrators with software and features for instant creation of customized Human Machine Interfaces (HMI) that run on mobile devices, configurable access control, security, and Cloud integration.

Features

Communication Channels
- Near Field Communication (NFC) Type5 tag (ISO/IEC 15693)
Target system interface protocols
- SWD debugging/programming interface protocol
- Software Secure Serial Port (S3P)
- UART (Modbus based) protocol
Security features
- Configurable access profiles
- Configurable, encrypted passwords
- AES-128 module-level data encryption
Configurable target memory access controls
- Accessible data addresses up to ~ 500
- User profiles up to ~ 100
- Access capabilities Read or Write or Read/Write

Electrical characteristics
- Input voltage 2.3V to 3.6V
- Low power consumption
  - Standby 1µA 0
  - Tx/Rx 1mA 0
Mechanical characteristics
- Dimensions: 28mm x 38mm x 3mm
Package options
- Bare board
- Plastic casing (IP44)
- Silicone resin (IP65)
Operating temperature range
- -20°C, +55°C
Acceptance
- CE (Europe)
- REACH and RoHS compliant

IoTize TapNLink NFC Module

Features

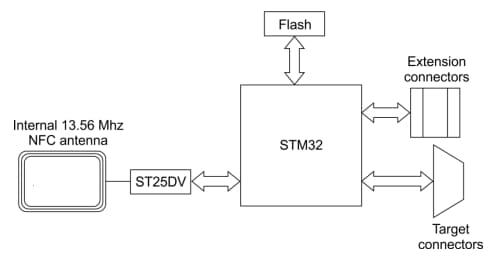

Block Diagram
