Intelligent Memory Silver NAND Flash M.2 2280 PCIe NVMe SSDs

Intelligent Memory Silver NAND Flash M.2 2280 PCIe NVMe Solid State Drives (SSDs) provide high performance in a broad 120GB to 1920GB capacity range. These devices are designed to meet the rigorous expectations of demanding applications in industrial and commercial spaces. Available in multiple form factors and optimized for performance, the PCIe SSDs offer extended S.M.A.R.T. lifetime monitoring functionality and power loss protection. The Intelligent Memory Silver M.2 2280 PCIe NVMe SSDs are JEDEC-compliant and tested in-house to analyze performance, endurance, and reliability.

Features

Broad range of capacity options
High sustained sequential data throughput
Designed for rigorous and demanding applications
Optimized for performance
Extended S.M.A.R.T. lifetime monitoring functionality
Power loss protection
M.2 2280-S2-M form factor
PCIe Gen 3 x 4 lanes host interface

NVMe1.3d command set
AES256 security
Thermal throttling
TCG OPAL2.0 with PSID security (optional)
Thermal monitor
Backward compatible to PCIe Gen 2 and Gen 1
RoHS compliant

Applications

Industrial
Commercial

Specifications

120GB to 1920GB capacity range
Endurance (total drive writes)
- 2.560 for JEDEC Client
- 640 for JEDEC Enterprise
Performance
- Sequential
  - Up to 2450MB/s read
  - Up to 1900MB/s write
- Random
  - Up to 270K IOPS read
  - Up to 420K IOPS write
2 million hours MTBF

Temperature ranges
- 0 to +70°C standard
- -40°C to +85°C industrial
Power supply
- 3.3V ±5% operating voltage
- 0.1ms to 100ms rise time range
- 1ms to 5s fall time range
- 1s minimum off time
Power consumption
- 2000mW to 3500mW read range
- 1600mW to 3400mW write range

Intelligent Memory Silver NAND Flash M.2 2280 PCIe NVMe SSDs

Features

Applications

Specifications

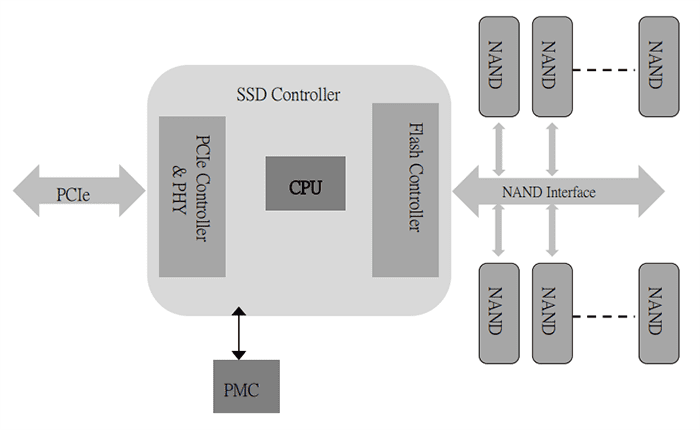

Block Diagram
