InnoPhase IoT Talaria TWO™ Multi-Protocol Wireless Modules

InnoPhase IoT Talaria TWO™ INP101x Modules feature integrated wireless connectivity plus microcontroller for edge-of-network IoT designs. The modules use the award-winning Talaria TWO™ SoC with ultra-low power Wi-Fi® and BLUETOOTH^® Low Energy for wireless data transfer. They feature an embedded Arm^® Cortex^®-M3 for system control and user applications plus advanced security elements for device safeguards. The new INP1012/INP1013/INP1014/INP1015 modules are more than 40% smaller than the INP1010/INP1011 and have additional antenna options. InnoPhase IoT Talaria TWO™ INP101x Modules are ideally suited for compact designs needing a direct-to-cloud connection such as smart door locks, remote security cameras, connected sensors, or other space-constrained products within home, commercial, industrial, and health markets.

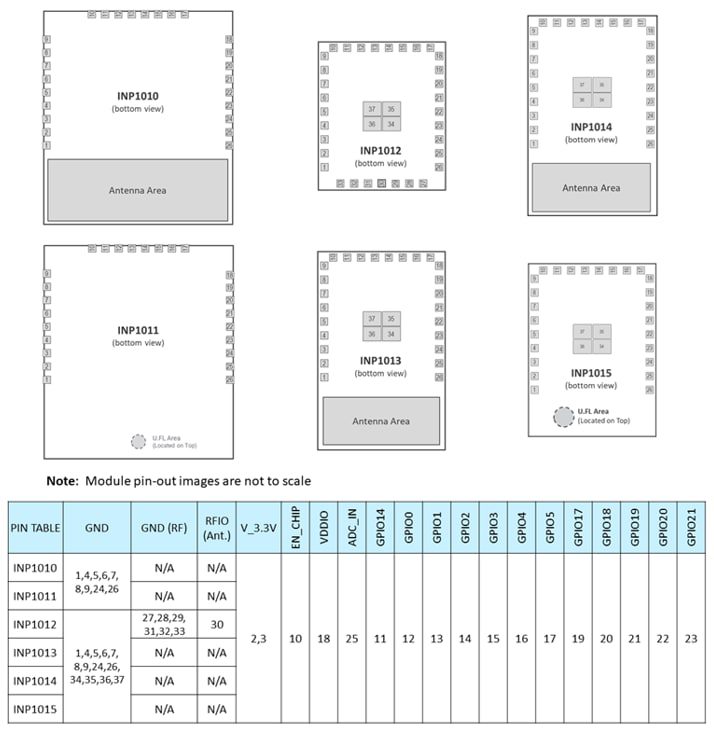

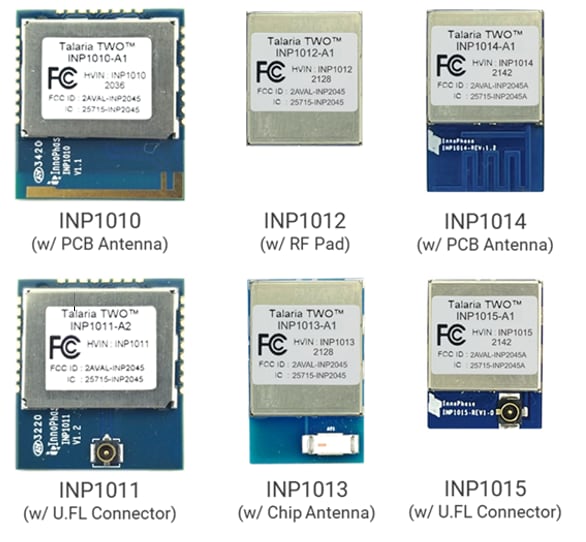

The various antenna options for the Talaria TWO module family are below:

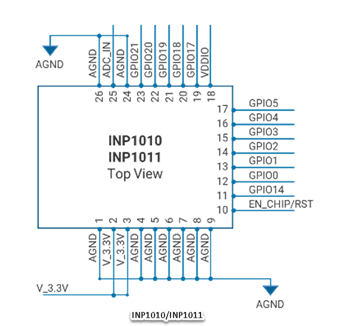

INP1010 – PCB antenna (PIFA)
INP1011 – U.FL antenna connectors

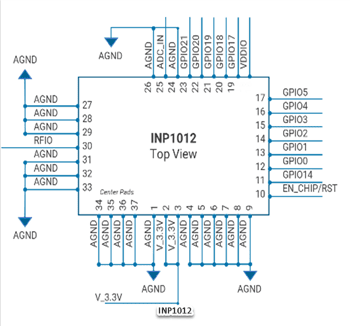

INP1012 – RF pad

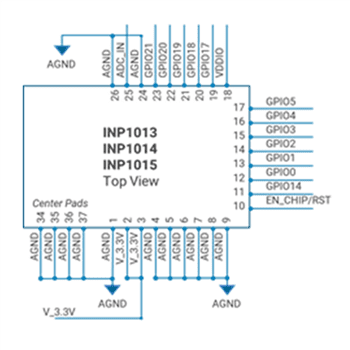

INP1013 – Ceramic chip antenna
INP1014 – PCB antenna (PIFA)
INP1015 – U.FL antenna connector

Features

Fully integrated module, including all required clocks and passives
Agency and standards certifications
Hostless operation using internal Arm Cortex-M3, or connect to a host MCU through UART/SPI ports
12 configurable GPIO ports
Eleven (11) configurable GPIO ports plus console port (GPIO17)
