InnoPhase IoT INP301x EVB-A Development Boards

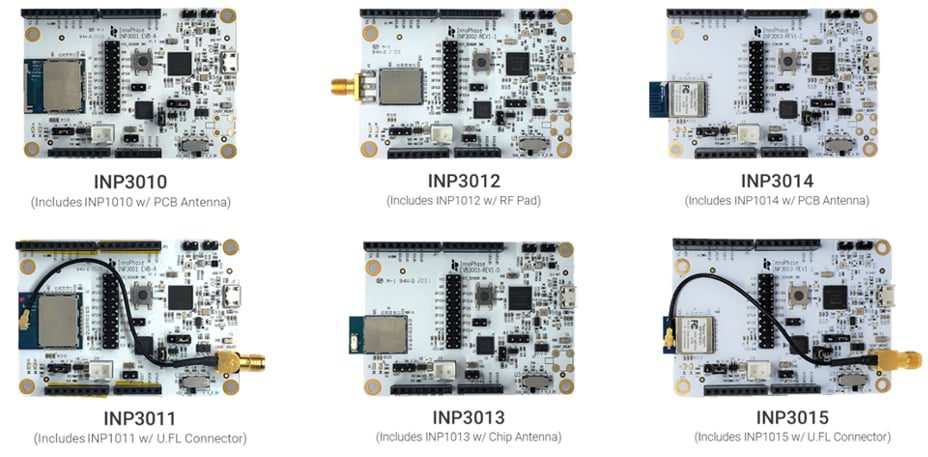

InnoPhase IoT EVB-A Development Boards (INP3010/INP3011/INP3012/INP3013/INP3014/INP3015) include everything needed for evaluating the Talaria TWO™ module’s performance and capabilities. The boards can also be used to complete initial system integration and development. Software binaries and programming tools for the EVB-A boards are available for free download on the InnoPhase IoT website. The software binaries include an IPERF3 application for throughput testing and a Multi-Purpose Demonstration application for current measurements across various scenarios for Wi-Fi^® idle connected, cloud messaging, and other power-saving options.

Features

Arduino UNO format interface board with mounted INP1010, INP1011, INP1012, INP1013, INP1014, or INP1015 module for easy evaluation in stand-alone mode or conjunction with an external MCU
Integrated pressure/humidity, temperature, and light sensors for prototyping; other sensor connection possible through available I²C, SPI, or SDIO ports
Pre-compiled software binaries for quick evaluation of the module’s key performance specifications
USB connectivity for power, loading programs into RAM, storing programs in embedded flash memory, and terminal message printout

Connection to available GPIO through central header pins or Arduino header pins at the board edge
External antenna included for INP3011, INP3012, and INP301 kits
Power management included for sourcing from a USB, external Arduino board, or optional battery connection
Available port for direct measurement of module current consumption
