Infineon Technologies XENSIV™ TLE493D-P2B6 MS2GO Kit (TLE493DP2B6MS2GOTOBO1) is a compact demonstration platform for the TLE493D-P2B6 3D Magnetic Hall Effect Sensor. The TLE493D-P2B6 combines high-accuracy magnetic field measurements with an extremely compact footprint and exceptionally low power consumption. The device detects the strength of a magnetic field in all three dimensions (x-, y-, and z-axis) and can sense linear magnetic as well as angular movements.

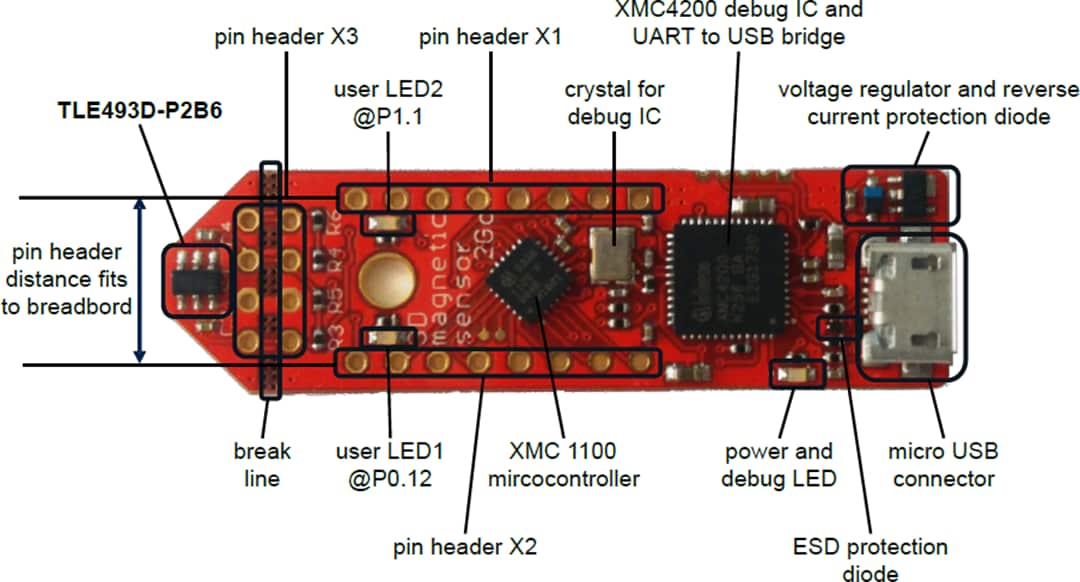

The Infineon Technologies XENSIV™ TLE493D-P2B6 MS2GO Kit includes a pre-mounted TLE493D-P2B6 3D Magnetic Hall Effect Sensor along with an Arm® Cortex®-M0 CPU. The MS2GO Kit also features a complete set of onboard devices, including an onboard debugger. The MS2GO Kit is designed to connect to a PC via USB. A Graphic User Interface (GUI) can then be used to configure and evaluate the features of the sensor.
In addition to the included ferrite block magnet, there are several dedicated extensions available that can be mounted to the MS2GO Kit to demonstrate various detection functions:
