Infineon Technologies XENSIV™ PAS CO2 Mini Evaluation Board

Infineon EVALPASCO2MINIBOARDTOBO1 XENSIV™ PAS CO2 Mini Evaluation Board enables the fast prototyping and design of a CO₂ sensing application using the Infineon photoacoustic spectroscopy (PAS) CO₂ sensor. Using a standard pin header can be plugged in very easily in a target application board, providing flexibility to PCB designers. The Infineon XENSIV PAS CO2 Mini Evaluation Board can be ordered in small quantities: this is more convenient in the early stage of an application development compared to a standard reel.

Features

Compatible with XENSIV™ PAS CO2 Sensor2Go Evaluation Kit for accessible lab evaluation
Easy connection to application board with standard 2.54mm pin header – no-reflow process needed

Access to all signals and functions of the product
Compatible with a combined PCB layout supporting reflow assembly for later use

Applications

HVAC (heating, ventilation, and air conditioning) systems
Smart home and building appliances like air purifiers, lighting, and IoT devices
Air quality devices with CO₂ alerts

Videos

Resources

XENSIV PAS CO2 Sensor Datasheet
XENSIV PAS CO2 Sensor Product Brief
XENSIV PAS CO2 Mini Evaluation Board User Manual

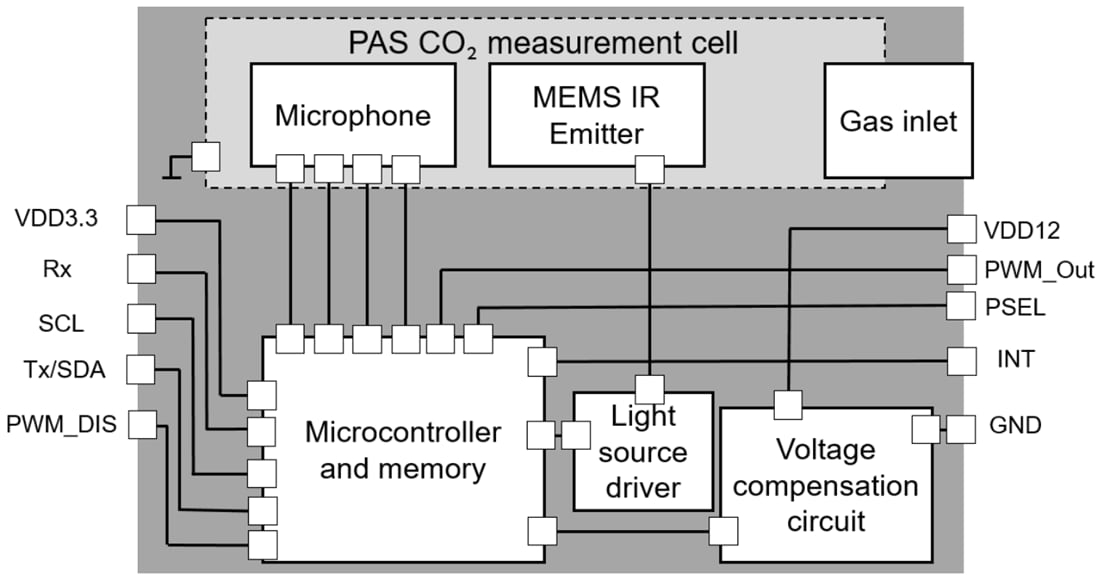

Block Diagram
