Infineon Technologies USB Type-C™ EZ-PD PMG1 MCU Family

Infineon Technologies USB Type-C™ EZ-PD PMG1 Family are high-voltage USB Type-C Power Delivery (PD) microcontrollers (MCUs). The Infineon Technologies USB-C EZ-PD PMG1 chips feature an Arm® Cortex®-M0/M0+ CPU, USB Type-C PD controller, and analog and digital peripherals. The devices are designed for embedded systems that transfer power through high-voltage USB Type-C PD ports, enhancing control capabilities.

Features

Highly-integrated single-chip solution
Comprehensive HW and SW protection
Software utility and wide support material available
Integrated configurable analog and digital blocks
Market-proven USB-IF certified solution with mature design tools
Extended industrial temperature -40°C to 105°C

System BOM and board area efficiency
Reliability and safety
Shorter development cycle and faster time-to-market
Programmability, product differentiation
Low implementation risk and minimized compatibility issues
Suitable for virtually any commercial or industrial application

Applications

High-voltage USB Type-C Power Delivery (PD) chargers
Various devices that require power delivery through high-voltage USB Type-C PD ports

Infineon Technologies USB Type-C™ EZ-PD PMG1 MCU Family

Features

Applications

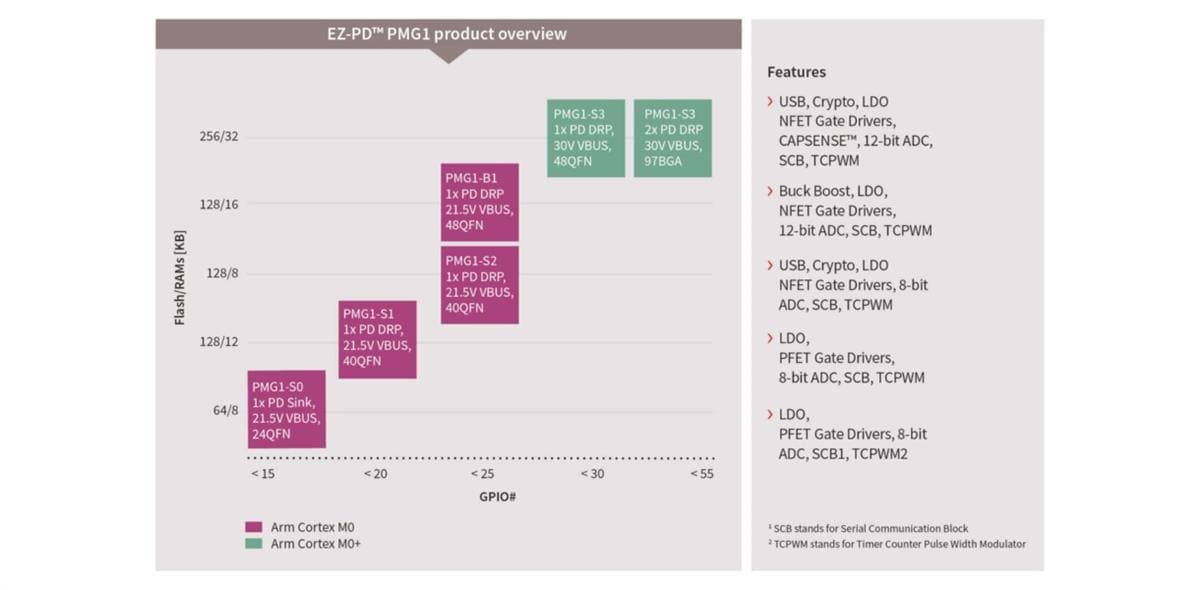

COMPARISON to PORTFOLIO

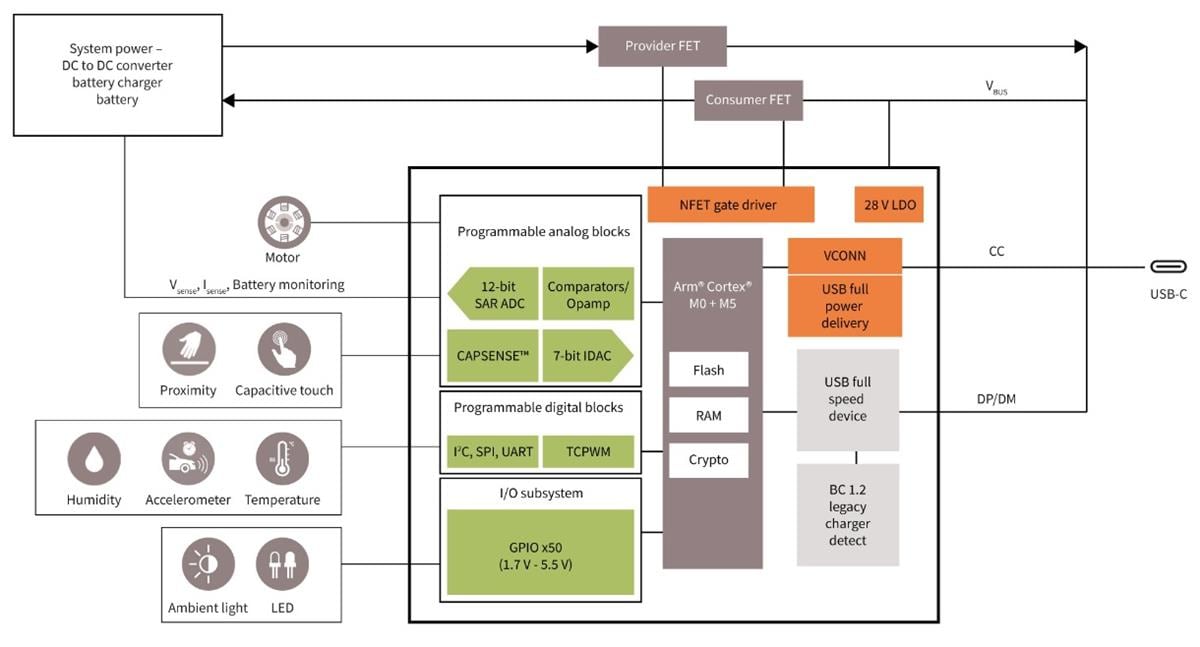

Block Diagram
