Infineon Technologies TLS412033VCOREBOARDTOBO1 3.3V Core-Board

Infineon Technologies TLS412033VCOREBOARDTOBO1 3.3V Core-Board is optimized to evaluate the TLS4120D0EP V33 OPTIREG™ Switcher with 3.3V output voltage. The TLS4120D0EP V33 OPTIREG™ Switcher is a synchronous standalone step-down DC/DC-converter especially designed for automotive applications.

The Infineon TLS412033VCOREBOARDTOBO1 3.3V Core-Board offers a wide input voltage range that covers a majority of automotive applications. The TLS412033VCOREBOARDTOBO1 Core-Board is optimized for the smallest solution size and has a low quiescent current operation at no-load condition. The 3.3V Core-Board demonstrates how the OPTIREG Switcher can be used in space-constrained applications.

Features

  • Wide input voltage range covers majority of automotive applications
  • Fixed 3.3V output voltage
  • Max continues output current of 2A
  • Optimized for lowest solution size
  • Low quiescent current operation at no load condition

Applications

  • Power supply for any automotive ECU
  • BCM, ADAS
  • Camera, Radar, Gateway
  • Infotainment, Car-Media, Telematics

Overview

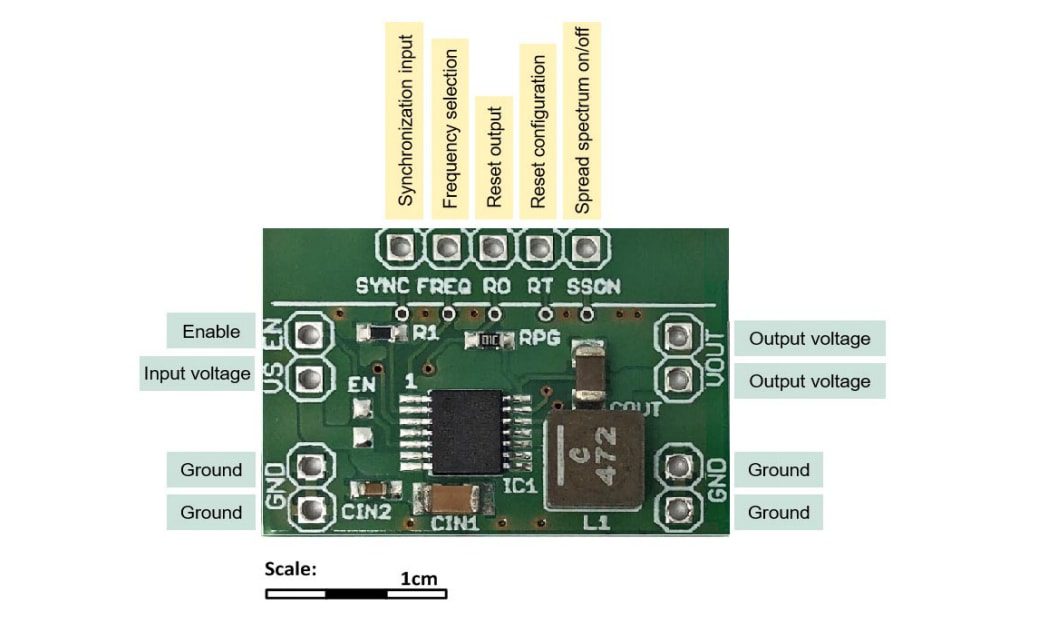

Location Circuit - Infineon Technologies TLS412033VCOREBOARDTOBO1 3.3V Core-Board

Infineon Power and Sensing Selection Guide
