Infineon Technologies TLE989X EVALB_TQFP Evaluation Board

Infineon Technologies TLE989X EVALB_TQFP Evaluation Board is engineered to easily get started with the TLE988x/9x family. The Infineon Technologies TLE989X EVALB_TQFP evaluates the functions and peripherals within the TLE988x/9x product line. The TLE989x is sold separately, and the evaluation board is a fast and convenient way to explore the TLE989x capabilities.

Features

3-phase B6 bridge
Single shunt in GND path
Integrated CAN transceiver
Onboard debugger
Reverse polarity protection
Virtual ComPort via J-Link

Debug LEDs
CAN-UART bootstrap loader
Sensor interfaces (for HALL and TMR)
SPI header
EMI filter

Applications

Industrial automation
Automotive control systems
Motor control applications
Robotics

Home automation
Power management systems
Renewable energy systems
IoT (Internet of Things) devices

Block diagram

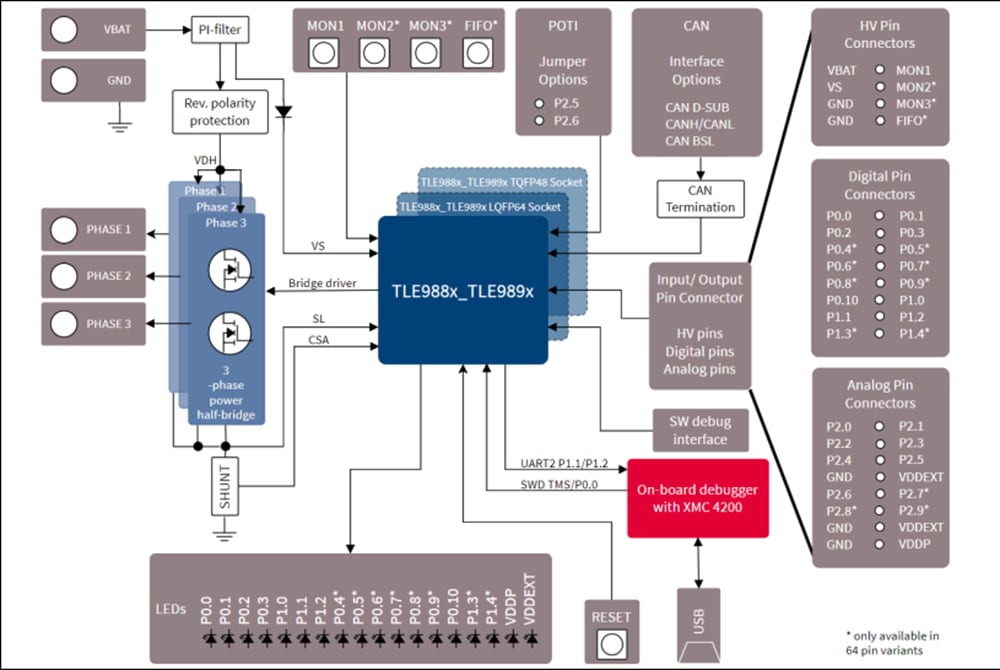

Block Diagram - Infineon Technologies TLE989X EVALB_TQFP Evaluation Board
