Infineon Technologies TLE989X EVALB_LQFP Evaluation Board

Infineon Technologies TLE989X EVALB_LQFP Evaluation Board ensures fast and easy TLE988x/9x family exploration. The Infineon Technologies TLE989X EVALB_LQFP is used to evaluate the capabilities, functions, and peripherals of the  TLE988x/9x product family. The TLE989x product is available separately.

Features

  • 3-phase B6 bridge
  • Single shunt in GND path
  • Integrated CAN transceiver
  • Onboard debugger
  • Reverse polarity protection
  • Virtual ComPort via J-Link
  • Debug LEDs
  • CAN-UART bootstrap loader
  • Sensor interfaces (for HALL and TMR)
  • SPI header
  • EMI filter

Applications

  • Industrial automation
  • Automotive control systems
  • Motor control applications
  • Robotics
  • Home automation
  • Power management systems
  • Renewable energy systems
  • IoT (Internet of Things) devices

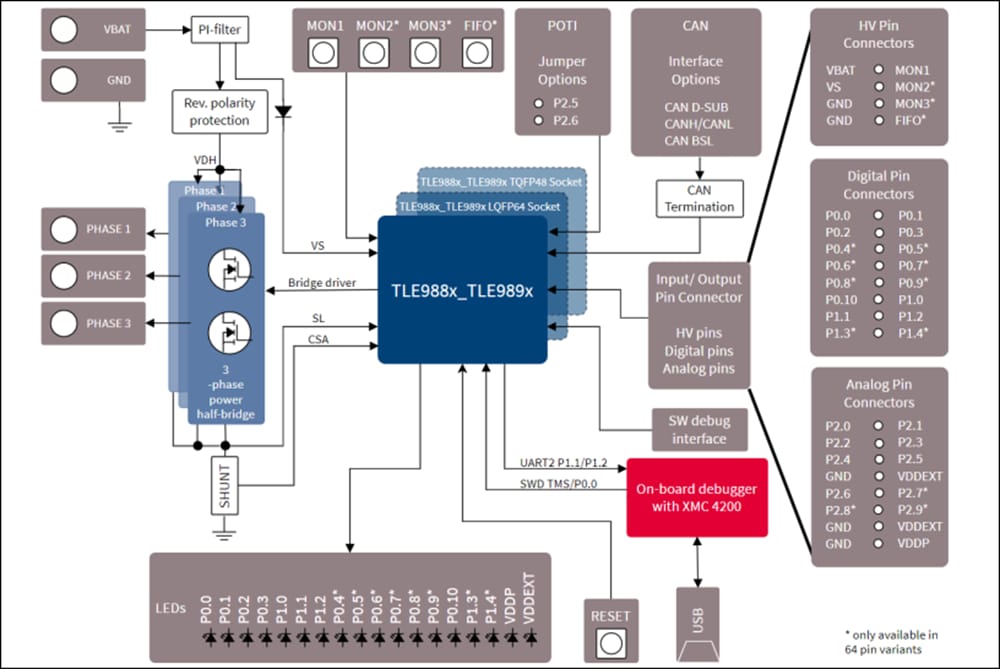

Block diagram

Block Diagram - Infineon Technologies TLE989X EVALB_LQFP Evaluation Board
