Infineon Technologies TLE9012AQUDTRBMS2TOBO1 Evaluation Board

Infineon Technologies TLE9012AQUDTRBMS2TOBO1 Evaluation Board is designed to quickly and easily demonstrate the TLE9012AQU. The TLE9012AQU Battery Monitoring and Balancing IC are designed for Li-Ion battery packs used in automotive, industrial, and consumer applications.

The Infineon TLE9012AQUDTRBMS2TOBO1 Evaluation Board features a wide input voltage supply range up to 75V. The Board includes cables for a quick setup, a connection LED for easy debugging, and a connection for a transceiver or additional slave in the daisy chain.

Features

  • Connection LED for easy debugging
  • Easy connection to transceiver or additional slave in the daisy chain
  • Cables included for fast set up
  • Wide supply range up to 75V input voltage
  • Integrated resistor divider for use with DC supply
  • Integrated dummy resistors for temperature measurement emulation

Required Equipment

  • TLE9012AQU Demo board
  • at least 1x iso UART cable
  • 1x resistor ladder (not necessary in evaluation board V5)
  • TLE9015QU Transceiver board
  • AURIX™ TC265 TFT Application kit
  • 12V power supply
  • USB cable
  • Power supply for resistor ladder (5V – 60V)
  • Optional: 12 Li-Ion cells (instead of resistor ladder)

Block Diagram

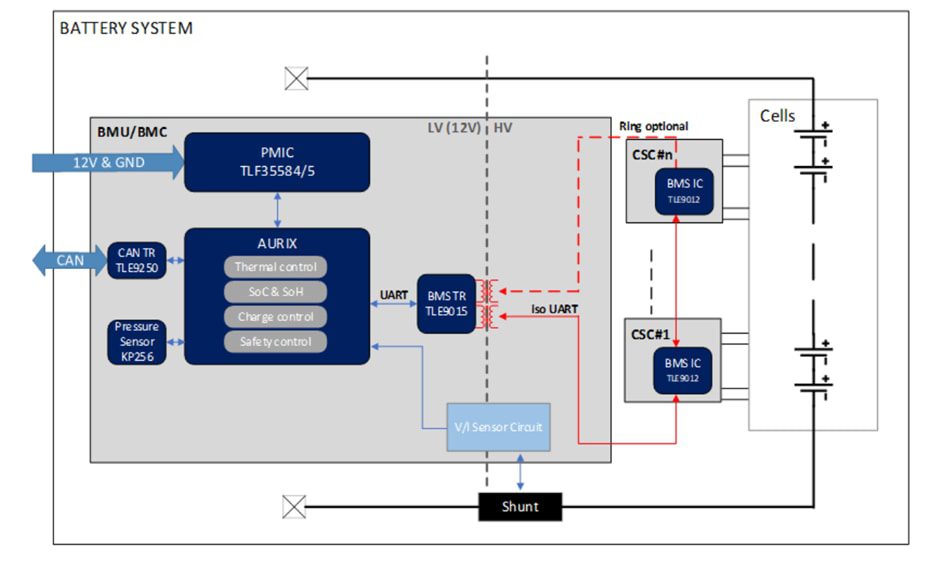

Block Diagram - Infineon Technologies TLE9012AQUDTRBMS2TOBO1 Evaluation Board
