Infineon Technologies TLE4999C8 Programmable Hall Sensor

Infineon Technologies TLE4999C8 Programmable Hall Sensor is dual channel with a bus-capable digital Short-PWM-Code (SPC) interface. Both channels on the TLE4999C8 are integrated on one die in the chip. The highly accurate measurement channels (main and sub) can be used for a plausibility check on the system level, enabling a high diagnostic coverage.

The Infineon Technologies TLE4999C8 Programmable Hall Sensor offers the highest accuracy over a wide temperature range and lifetime. This is achieved by an integrated digital temperature- and stress-compensation.

Features

Two highly accurate redundant Hall measurement channels (main and sub) integrated on one chip
Developed compliant to ISO 26262 (first edition 2011) Safety Element out of Context for safety requirements rated up to ASIL D
High diagnostic coverage by plausibility checking of main and sub signal on system level
Fast digital SPC interface with min. 0.5µs unit time for transmission of main and sub signals in less than 500µs
Bus-capability for up to 4 sensor ICs on one data line
Selectable 12/14/16bit output signals, protected by CRC and rolling counter

Thin 8-pin SMD single sensor package
Operating automotive temperature range -40°C to 125°C
Digital temperature and stress compensation
Reverse-polarity and over voltage protection for V_DD, GND and OUT pins
Main and sub channel programmable independently in EEPROM
Multipoint calibration up to 9 points
Frameholder mechanism
Single-wire SICI programming interface on output pin
2 x 16 bit user-configurable ID in EEPROM

Applications

Robust replacement of potentiometers
Linear and angular position sensing in automotive and industrial applications with highest accuracy requirements

Safety
- Pedal position
- Throttle position
- Steering torque sensing

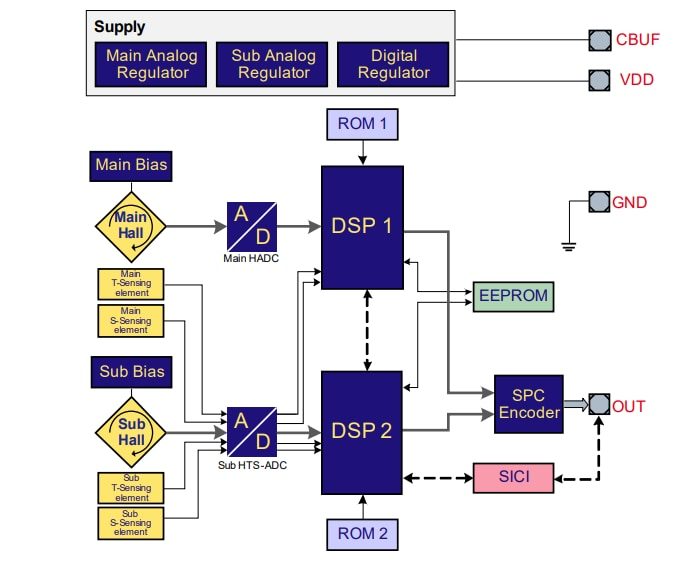

Block Diagram
