Infineon Technologies TLE493D-P2B6 Low Power 3D Hall Sensors

Infineon Technologies TLE493D-P2B6 Low Power 3D Hall Sensors are enabled by improved accuracy. These devices are excellent for high-performance applications concerning the pricing and package size. The TLE493D-P2B6 has an extremely low quiescent current and wake-up function in a small package. Also, the sensors provide options for configuration to fit customer requirements (e.g., data communication, the definition of measurements, etc.). The safety manual supports functional safety applications.

The configurability of the sensor is used in application platforms to adapt to the end customer’s wishes. Infineon Technologies TLE493D-P2B6 is available in 4 different variants ending with A0, A1, A2, or A3. The underlying feature is the so-called Bus mode configuration of this device. It’s possible to connect up to four sensors to one I²C bus. The specific addressing is then done via four different variants.

Features

3D (X, Y, Z) magnetic flux density sensing of ±160mT
Programmable flux resolution down to 65µT (typ.)
X-Y angular measurement mode
Diagnostic measurements to check digital parts, analog parts, and Hall probe of the sensor
Wake Up function and Power-down mode with 7nA (typ.) power consumption
12-bit data resolution for each measurement direction plus a 10-bit temperature sensor
Variable update frequencies and power modes (configurable during operation)
Temperature range T_j = -40°C to 125°C, supply voltage range = 2.8V to 3.5V

Triggering by external µC possible via I²C protocol
Interrupt signal to indicate a valid measurement to the microcontroller
Component reduction due to the 3D magnetic measurement principle
Wide application range addressable due to high flexibility
Platform adaptability due to device configurability
Supporting functional safety utilizing integrated diagnostics
Very low system power consumption due to Wake-Up mode resulting in extended battery runtime
Disturbance of smaller stray fields are neglectable compared to the high magnetic flux measurement range

Applications

Gear stick position
Control elements in the top column module and multi-function steering wheel

Multi-function knobs
Pedal/valve position sensing

Infineon Technologies TLE493D-P2B6 Low Power 3D Hall Sensors

Features

Applications

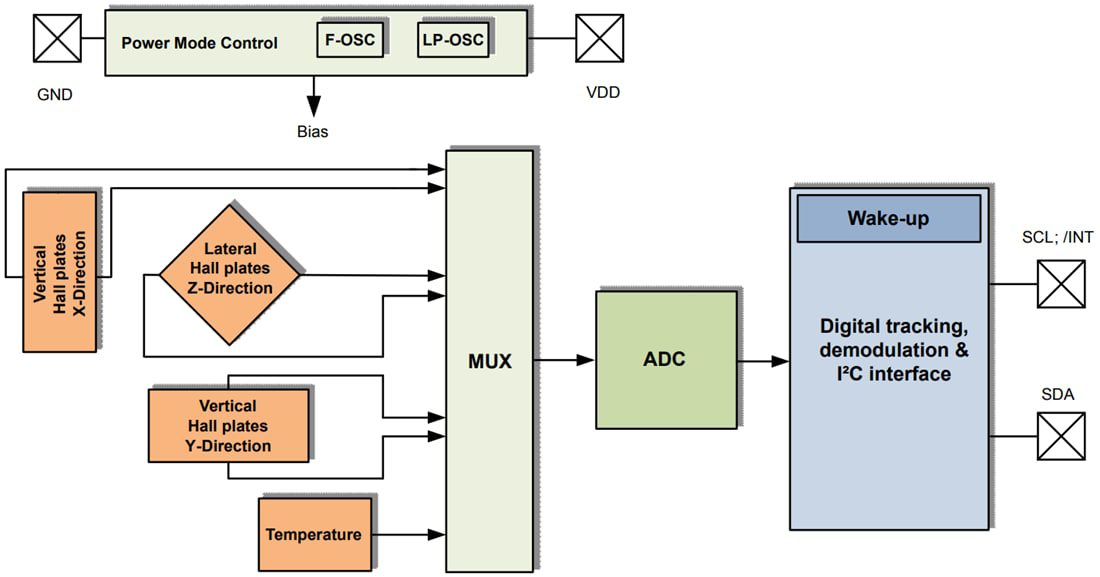

Block Diagram
