Infineon Technologies TLD5099EP_B2B Evaluation Board

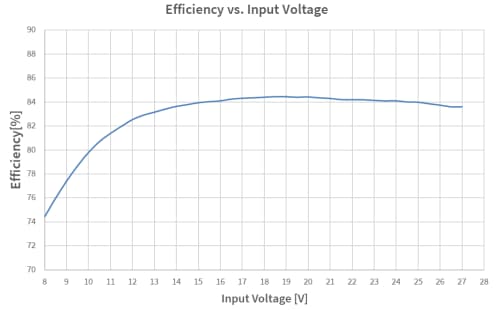

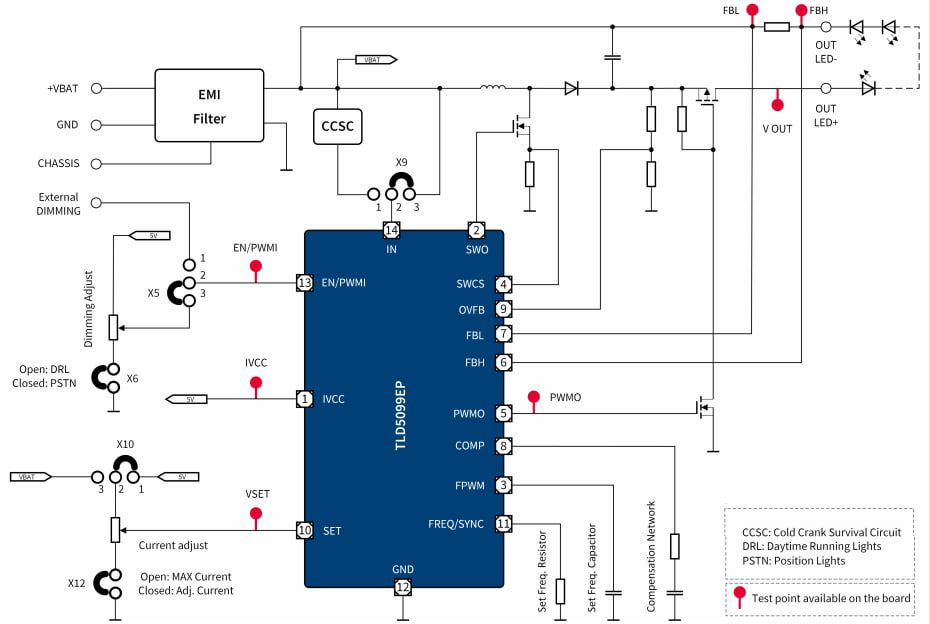

Infineon Technologies TLD5099EP_B2B Evaluation Board is designed for high power LED applications with the TLD5099EP controller in the boost to battery topology. This evaluation board delivers up to 21W to the load with above 84% efficiency. The TLD5099EP_B2B evaluation board comes with auxiliary circuits to protect the DC-DC and the load during short to ground. This evaluation board features output current adjustment trimmer, power derating circuitry, embedded PWM engine, and Cold Crank Survival Circuit (CCSC). Typical applications include automotive and lighting.
