Infineon Technologies TDM388x IPOL Power Modules

Infineon Technologies TDM388x IPOL Power Modules come with an integrated inductor and is an easy-to-design, fully integrated 3A (TDM3883) or 4A (TDM3885) buck converter. Each device offers a high-efficiency load and line regulation over a wide input supply range with a compact design. With integrated inductor and capacitors, it reduces external components and saves 80% of PCB area. Therefore, Infineon Technologies TMD388x allows a much higher power density while minimizing the parasitic parameters. This feature makes the TDM388x an easy-to-use, highly efficient, and reliable step-down DC/DC converter ideal for system designers seeking a compact and fast-to-market solution in various applications.

Features

  • Optimized module with inductor included
  • Micro-sized 2.7mm x 3.1mm x 2.3mm
  • Continuous 3A (TDM3883) or 4A (TDM3885) load capability
  • Single input voltage range (4.5V to 14V)
  • 800kHz switching frequency
  • 10µA supply current at shutdown
  • Enhanced stability IPOL engine stable with ceramic capacitors and no external compensation
  • Enhanced light load efficiency with reduced switching frequency and diode emulation
  • Forced continuous conduction mode option
  • Thermally compensated internal over-current protection
  • Internal soft-start, enable input, pre-bias start-up, thermal shut down, Power Good output
  • Precision reference voltage (0.5V ±1.0%)
  • Lead-free, halogen-free, and RoHS6 compliant
  • Easy to design and fewer external components
  • High power density
  • High efficiency
  • Reduced BOM, 80% area saving on the customer PCB
  • Improved performance compared to discrete solution due to low parasitic
  • Longer battery life for portable applications
  • Infineon excessively tests the integrated inductor in both reliability and FT

Applications

  • Space and thermally constrained application
  • Telecom and datacom applications
  • Network storage
  • Servers
  • FPGA/DSP/ASIC in computing, industry, and autonomous driving

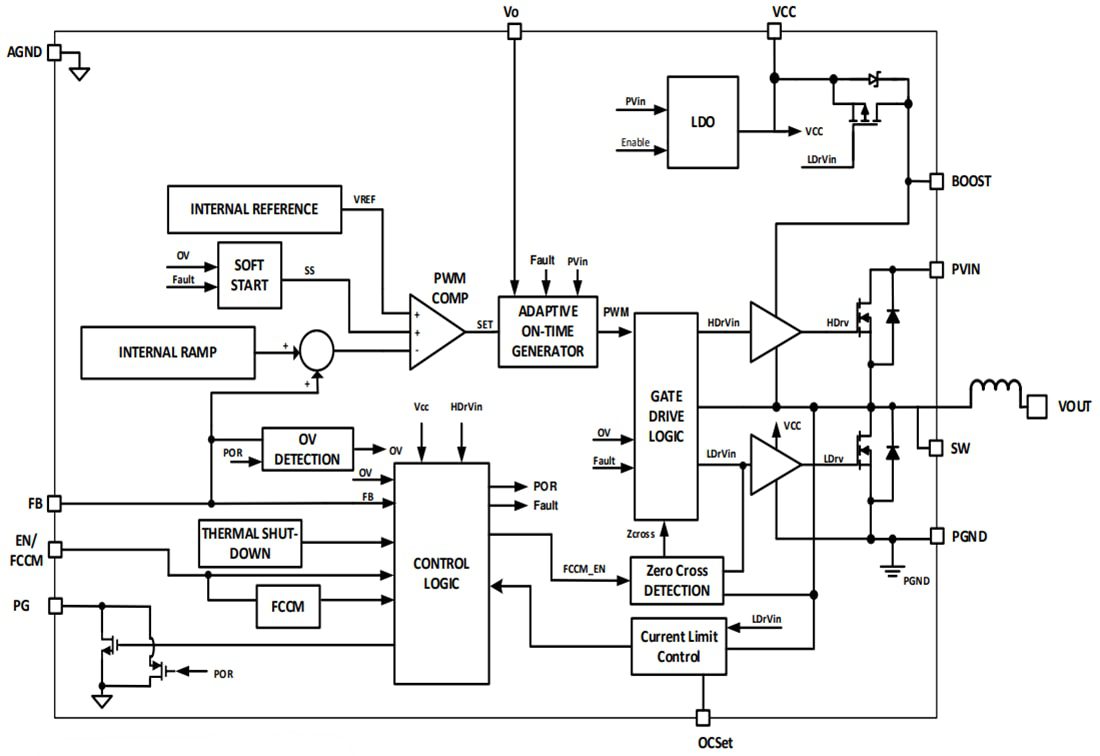

Block Diagram

Block Diagram - Infineon Technologies TDM388x IPOL Power Modules
