Infineon Technologies TC367 5V Application Kit

Infineon Technologies TC367 5V Application Kit offers limited access to signals for early evaluation purposes. The TC367 5V Application Kit includes an LCD XGA display 320×240 for convenient handling. The Infineon TC367 5V Application Kit offers a wide variety of connectors, including standard power, micro USB, RJ45, and a mini SD card slot.

Features

Infineon’s AURIX™ TC367 in LFBGA-292 package
LCD XGA Display 320×240
SD card slot (mini-SD)
High-Speed CAN transceiver (CAN FD capable)
USB to UART bridge
Ethernet gigabit PHY

LIN Transceiver
Crystal 20MHz (default) or external clock
USB miniWiggler JDS for easy debugging
4 Low power status LEDs
RTC with alarm
Acoustic beeper
100mm x 100mm

Connectors

Standard power connector
Micro USB connector for ASC Interface (ASC0) and miniWiggler
RJ45 connector for Ethernet (if Gigabit Ethernet supported by assembled CPU)
16-pin header for JTAG interface (OCDS)
10-pin header for DAP
10-pin (2×5) Header for LIN Transceiver (LIN)
10-pin (2×5) Header for CAN High-Speed Transceiver (CAN0)
Two 40-pin connectors with I/O signals
mini SD card slot

Components

Infineon’s Multi-Voltage Safety Micro Processor Supply TLF35584QV
LED to validate power supply (5V or 3.3V)
LED indicating RESET (ESR0) active state
LED indicating active miniWiggler JDS
LED switched via DAS software
Infineon’s High Speed CAN Transceiver TLE 9251V (CAN FD capable)
Infineon’s LIN-Transceiver TLE 7259-3GE
QSPI Real-Time Clock/Calendar with SRAM and unique MAC Id MCP79511 (if CPU not support I²C)
I²C Real-Time Clock/Calendar with SRAM and unique MAC Id MCP79411 (if CPU support I²C)
USB to UART bridge FT2232HL (FTDI)
Integrated 10/100/1000M Ethernet Precision Transceiver RTL8211FI-CG (Realtek)
Touch screen controller ADS7843
4 general-purpose LEDs
Reset switch
Wake switch
Xilinx CPLD XC9572XL

Block Diagram

Infineon Technologies TC367 5V Application Kit

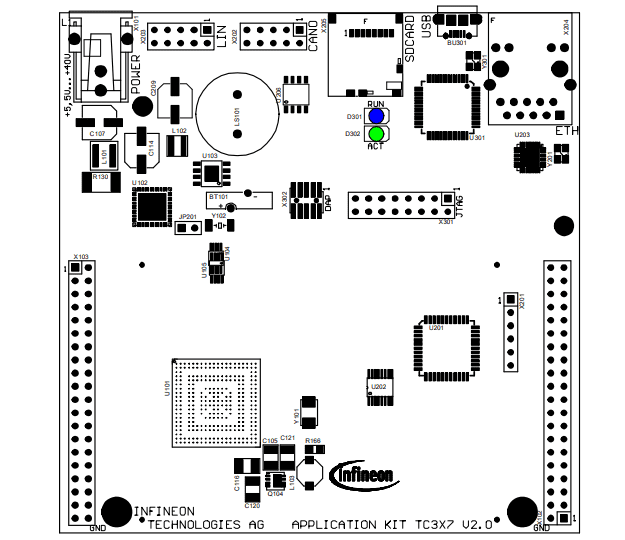

Top Placement

Bottom Placement
