Infineon Technologies REF_FRIDGE_D111T_RC2_SL Reference Board

Infineon Technologies REF_FRIDGE_D111T_RC2_SL Reference Board is a ready-to-use reference single-layer printed-circuit-board designed for refrigerator compressors. The reference board demonstrates the complete Infineon solution, including the IMD111T-6F040 digital motor control iMOTION™ driver and the IKD04N60RC2 RC-D2 600V discrete IGBT.

The Infineon REF_FRIDGE_D111T_RC2_SL Reference Board has a fast time to market with a design that can easily copy to a final mass-production application board. The device is easily interfaced through the iMOTION link. The board is intended to program and debug different series of iMOTION™ motor control ICs. The REF_FRIDGE_D111T_RC2_SL board is crucial for tuning a motor control system.

Features

iMOTION™ driver IMD111T-6F040: ready-to-use motion controller with scripting engine and 6-channel silicon on insulator (SOI) driver
RCD2-600V IGBT for lowest EMI and losses
System solution enables highly integrated, flexible design and lowest EMI

Applications

Home appliances
Motor control and drives
Refrigeration and freezing – compressor drives

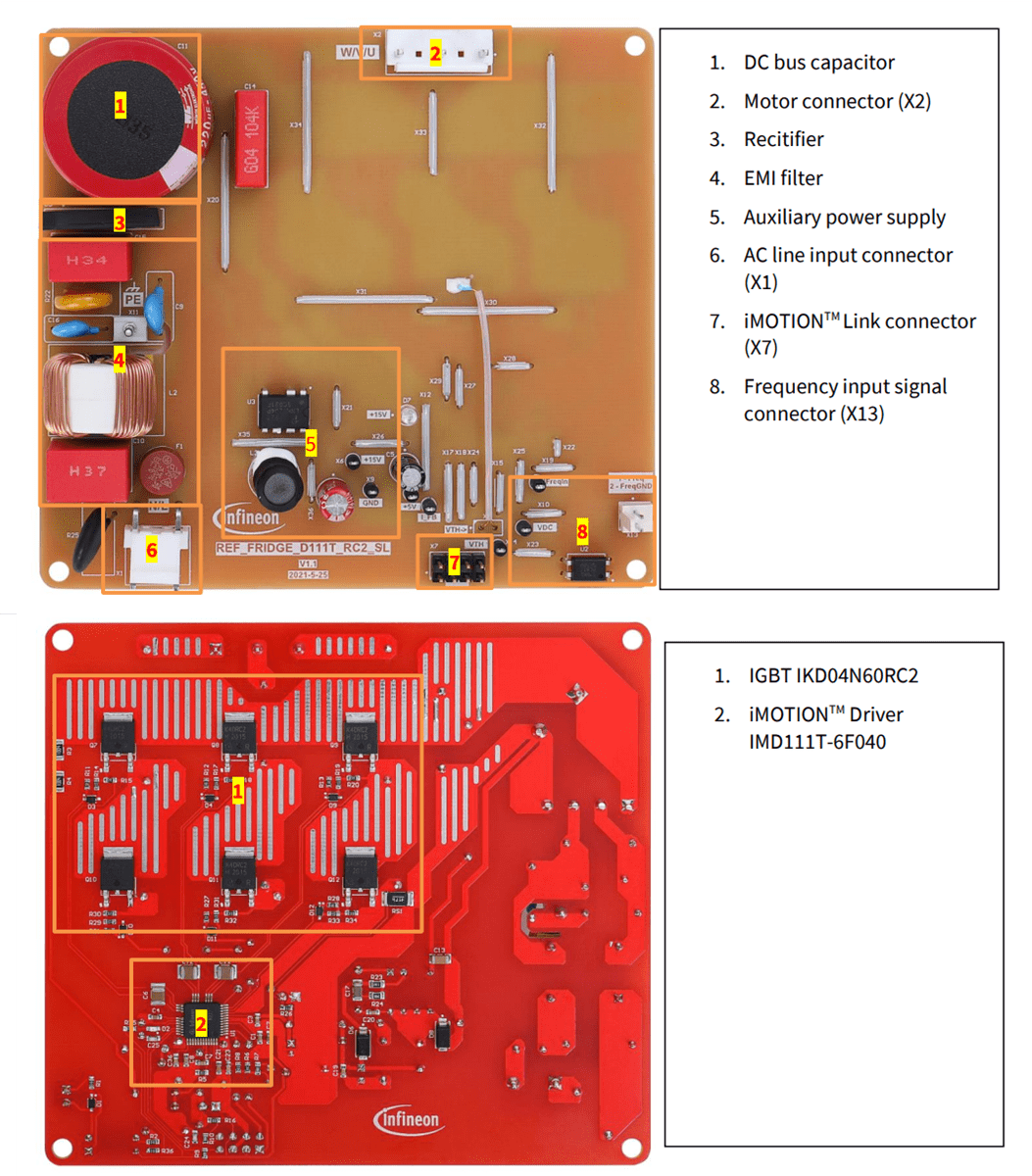

At a Glance

Infineon Technologies REF_FRIDGE_D111T_RC2_SL Reference Board

Block Diagram

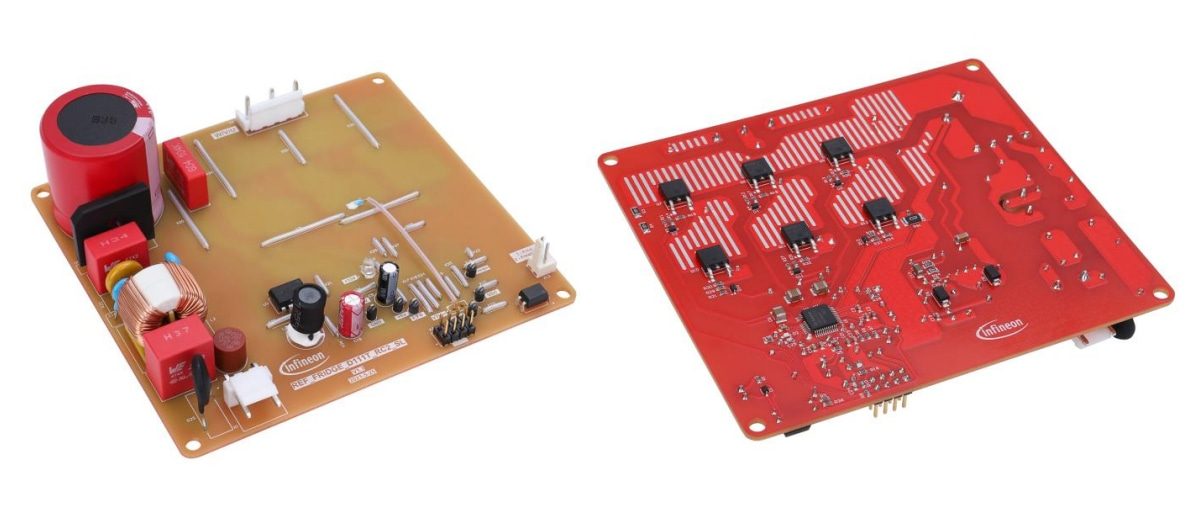

Overview
