Infineon Technologies REF_Fridge_D111T_MOS Reference Design Kit

Infineon Technologies REF_Fridge_D111T_MOS Reference Design Kit is a complete reference design board intended for refrigerator compressors. The REF_Fridge_D111T_MOS demonstrates a complete Infineon solution that includes the IMD111T-6F040 digital motor control IC iMOTION™ Smart Driver and the 600V CoolMOS™ PFD7 super junction MOSFET.

The Infineon Technologies REF_Fridge_D111T_MOS Reference Design Kit is developed to support the design of refrigerator compressor drivers.

Features

iMOTION™ Smart Driver IMD111T-6F040
System solution enables best light-load efficiency and compact design
Ready-to-use motion controller with scripting engine and 6-channel silicon on insulator (SOI) driver

600V CoolMOS™ PFD7 – optimized technology with lowest Q_rr, ESD protection and compact SOT223 surface mounted device (SMD) package

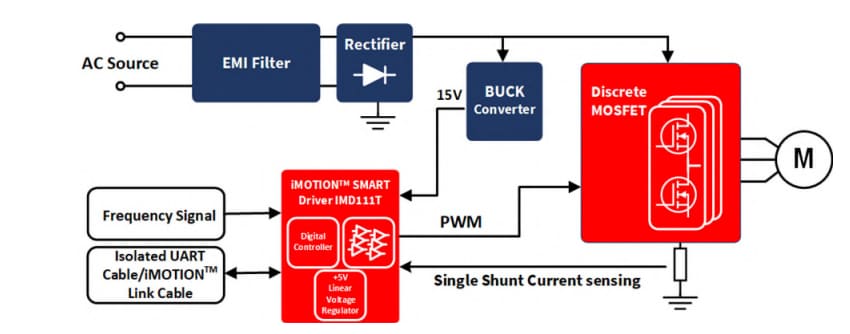

Block diagram

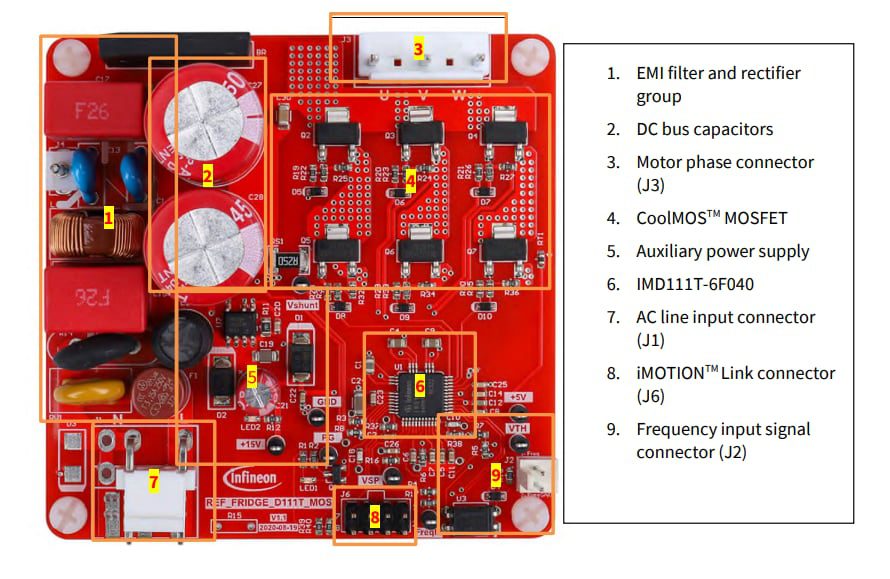

Component Layout
