Infineon Technologies REF_Fridge_C101T_IM231 Reference Design Kit

Infineon Technologies REF_Fridge_C101T_IM231 Reference Design Kit is a complete reference design board designed for refrigerator compressors. The REF_Fridge_C101T_IM231 Reference Design Kit demonstrates the entire Infineon solution, including CIPOS™ Micro Pro series IPM IM231-L6S1B, digital motor control IC iMOTION™ IMC101T-T038 and linear voltage regulators IFX54211MB V33.

The Infineon REF_Fridge_C101T_IM231 Reference Design Kit is embedded on a PCB, focusing on specific applications and defined use cases that can include software. PCB and auxiliary circuits are optimized for the requirements of the target application.

Features

CIPOS™ Micro Pro IPM based on low V_CE(sat) TRENCHSTOP™ IGBT6
Accurate overcurrent protection (±5%)
Built-in temperature sensor
Motor power rating up to 400W at 10kHz
Motion control engine as ready-to-use controller solution for sensorless and Hall-sensor motor drives

Field-oriented control (FOC) for permanent magnet synchronous motor (PMSM/BLDC)
Current sensing via single shunt or leg shunt
Class B pre-certification (IEC60335) for MCE2.0 firmware

Block Diagram

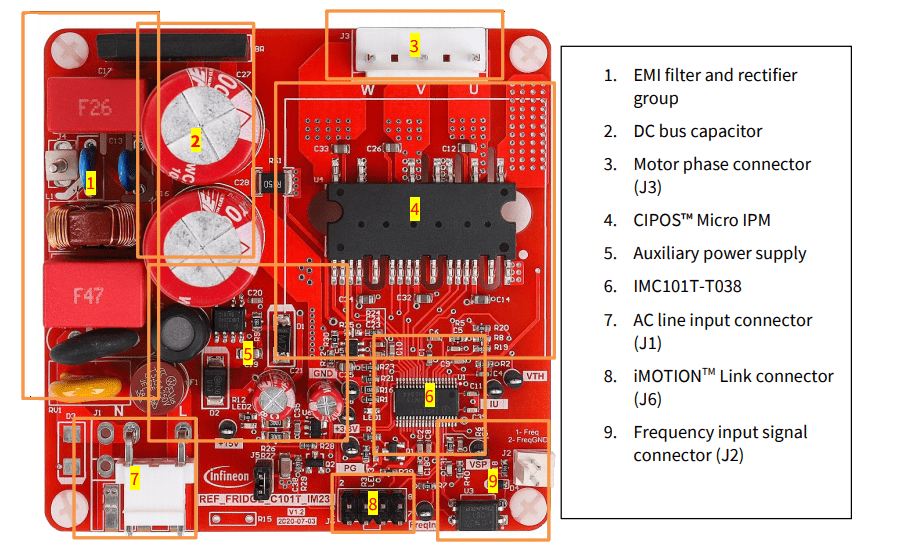

Overview
