Infineon Technologies REF_BGT60LTR11AIP_M0 Evaluation Board

Infineon Technologies REF_BGT60LTR11AIP_M0 Evaluation Board is a radar Arm® Cortex®-M0 reference board that features the BGT60LTR11AIP 60GHz XENSIV™ radar sensor. The Infineon Technologies sensor has an XMC1302 Arm Cortex-M0-based microcontroller. Configured in SPI mode, this board offers the ability to unleash the features of the BGT60LTR11AIP radar sensor for radar-based applications.

Features

31.1mm x 27.4mm size
1Tx 1Rx Antennas in Package (AIP) with 80° Half Power Beam Width (HPBW)
Digital interface for configuration and data transfer to an MCU
Radar MMIC is configured in SPI mode
2 LEDs illustrating the algorithms’ outputs

Operates with Micrium-based GUI
Up to 14m detection range for human targets (with advanced motion sensing algorithm)
Advanced functionalities by SPI configuration or further signal processing
Low power consumption

Applications

Gesture recognition
Distance measurement
Collision avoidance
Vital Sign monitoring

Occupancy sensing
Fall detection
Security and surveillance
Traffic monitoring

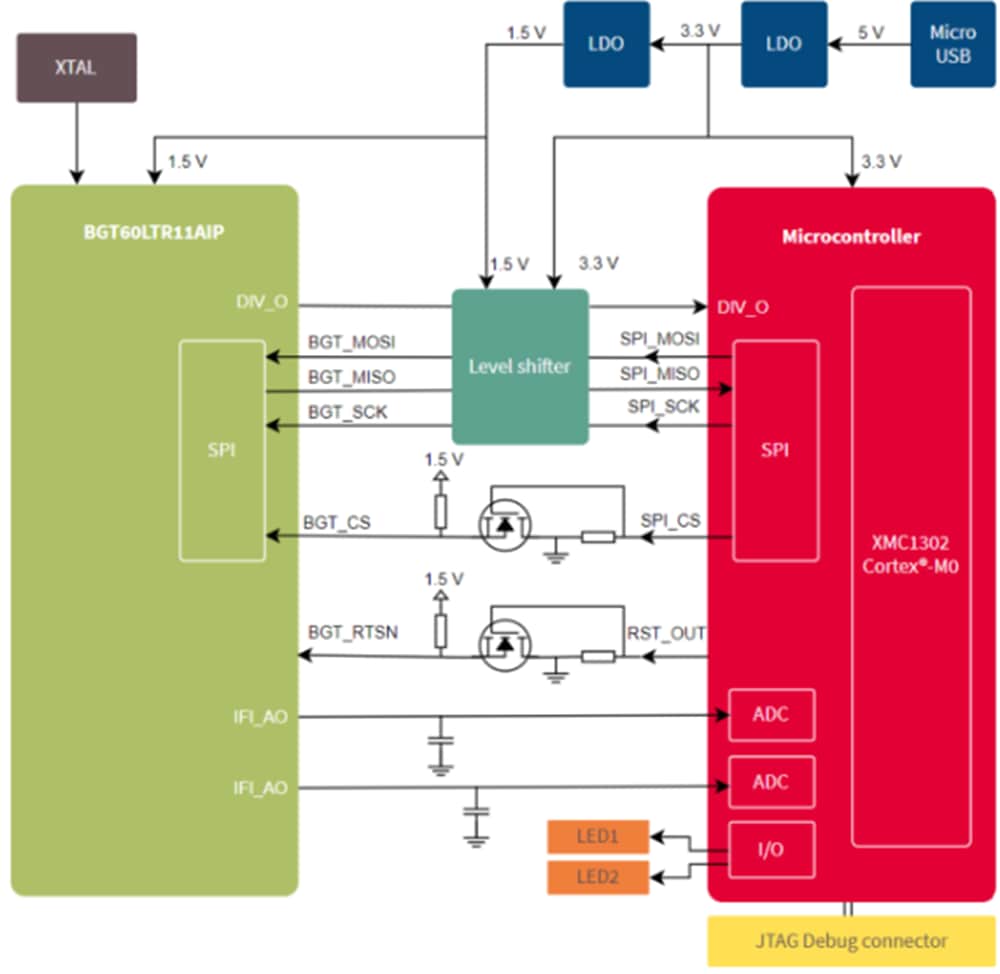

Block Diagram

Block Diagram - Infineon Technologies REF_BGT60LTR11AIP_M0 Evaluation Board
