Infineon Technologies REF-HAIRDRYER-C101-6ED Reference Design Kit

Infineon Technologies REF-HAIRDRYER-C101-6ED Reference Design Kit is a turnkey motor drive designed for high-performance, high-efficiency PMSM/BLDC motor drive applications. The applications include all of the required elements for hairdryer applications, such as the IMC101T iMOTION™ controller, IGBT, and 6EDL04I06PT SOI three-phase gate driver.

The Infineon REF-HAIRDRYER-C101-6ED Reference Design Kit features Infineon’s thin-film SOI technology and advanced motion control
engine (MCE 2.0) technology for small power PMSM/BLDC motor drives up to 100 kRPM speed and inverters up to a rating of 400W. The Kit is optimized for small home appliances like hairdryers, fans, pumps, and other low power motor drive applications.

Features

Input voltage 85V to 265V_AC
400W at 220V_AC input with wind cooling
VSP speed command potentiometer
Turnkey version sensor less & sensor FOC control
User UART for Script function
Over-current and over-temperature protection

Fault diagnostic LED output
Low noise single shunt current sample
Auxiliary power supply with 15V, 3.3V
Round PCB in diameter of 70mm, 2 layers, 1oz copper
RoHS compliant

Applications

Motor control and drives
Small home appliances

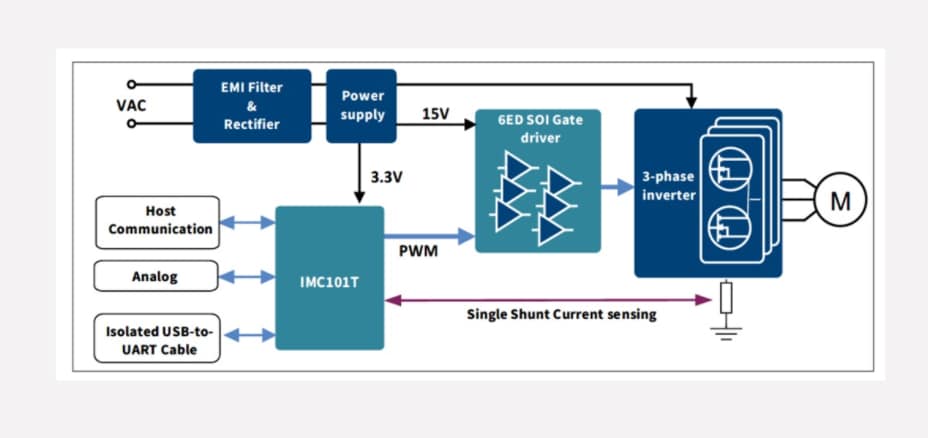

Block Diagram
