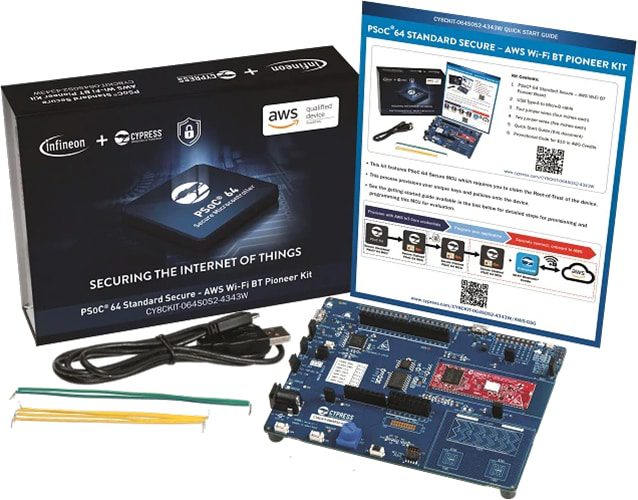

Infineon Technologies PSoC™ 64 Standard Secure AWS Wi-Fi® BT Pioneer Kit

Infineon Technologies PSoC™ 64 Standard Secure AWS Wi-Fi® BT Pioneer Kit (CY8CKIT-064S0S2-4343W) is a low-cost development platform based on the PSoC 64 Series Microcontroller and the CYW4343W WICED Wi-Fi/BLUETOOTH® Combo Device. The PSoC 64 MCU is an ultra-low-power Programmable System-on-a-Chip, specifically designed for IoT connectivity applications using the Amazon Web Services (AWS) cloud platform.

The PSoC 64 Standard Secure AWS Wi-Fi BT Pioneer Kit features the PSoC 64 Standard Secure AWS MCU (CYS0644ABZI-S2D44)

150MHz Arm® Cortex®-M4 (non-secure processing environment)
100MHz Arm Cortex-M0+ (pre-configured with a root-of-trust and secure processing environment running Trusted Firmware-M)
2MB of Flash, 1MB of SRAM
Secure Digital Host Controller (SDHC) supporting SD/SDIO/eMMC interfaces
Programmable analog blocks and programmable digital blocks
Full-Speed USB
Serial memory interface
Industry-leading capacitive sensing with CAPSENSE™
PDM-PCM digital microphone interface

Murata Type 1DX Module (CYW4343W Wi-Fi + BT Combo Chip)
This Murata Type 1DX Module provides IEEE 802.11b/g/n-compliant Wi-Fi with integrated Bluetooth 5.1, best-in-class power consumption, and enables small form factors for IoT devices.

Excelon™ Ultra Ferroelectric RAM (F-RAM)
This Infineon Excelon Ultra 4Mbit, 108MHz (limited to 80MHz on this kit) Quad SPI nonvolatile F-RAM (CY15B104QSN) in an 8-pin SOIC package facilitates instant, local, and energy-efficient data-logging at write speeds that are as fast as parallel battery-backed solutions and provides virtually unlimited read/write cycle endurance.

Industry-Leading CapSense
The CapSense capacitive sensing interface includes two buttons and a five-segment slider. Using the 4th-generation CAPSENSE provided in the PSoC 64 MCU, self- and mutual-capacitive-sensing systems can be evaluated.

FreeRTOS Qualified and AWS IoT Core
The PSoC 64 Standard Secure AWS MCU has been FreeRTOS qualified. FreeRTOS is a Real-Time Operating System (RTOS) that includes a kernel and a growing set of libraries for connectivity, security, and Firmware Over-the-Air (FOTA) updates. FreeRTOS supports both a CMake build flow and a Make build flow with the ModusToolbox® software environment. The PSoC 64 Standard Secure AWS MCU is designed to work seamlessly with the AWS IoT Core.

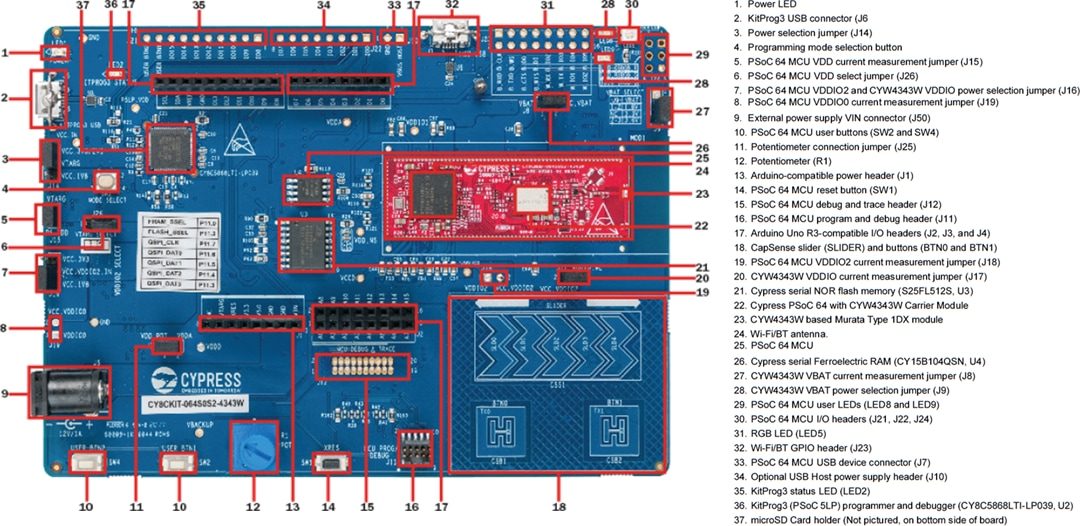

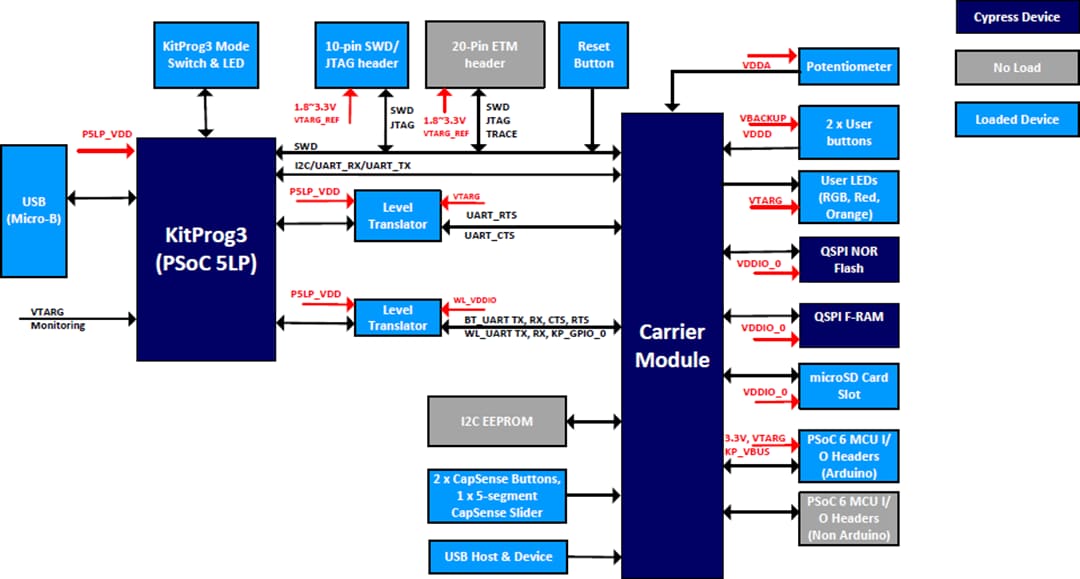

Features

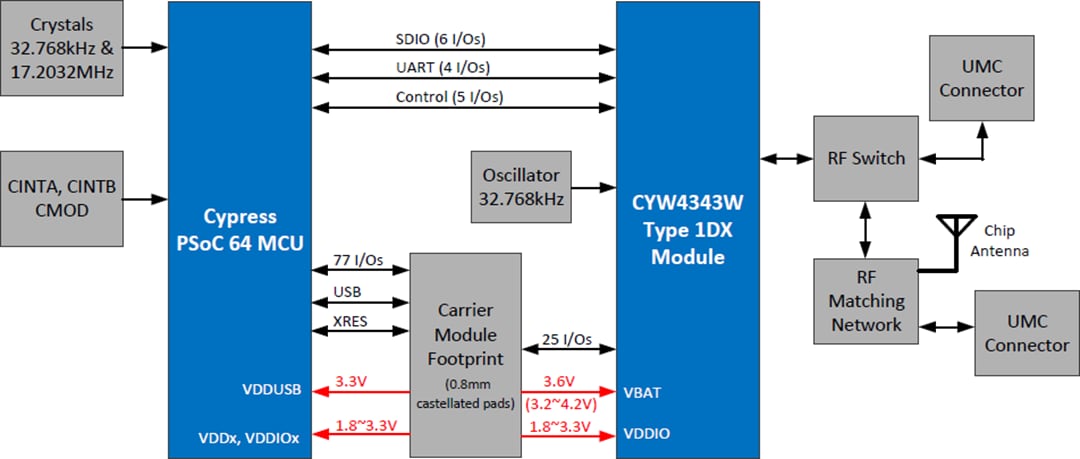

CY8CMOD-064S0S2-4343W Carrier Module
- PSoC 64 MCU (CYS0644ABZI-S2D44)
- Murata 1DX Ultra-Small 2.4GHz WLAN and BLUETOOTH Module based on the CYW4343W
- Integrated Wi-Fi/BLUETOOTH® antenna
512Mbit external Quad SPI NOR Flash for fast, expandable memory for data and code
4Mbit Quad SPI ferroelectric random-access memory (F-RAM)
CAPSENSE touch sensing slider (5 elements) and two buttons, capable of using self-capacitance (CSD) or mutual-capacitance (CSX) sensing methods

KitProg3 onboard SWD programmer/debugger with USB-UART and USB-I²C bridge functionality
Arduino Uno R3-compatible I/O headers
USB Micro-B connector
8.0V, 2.5V, and 3.3V operation of PSoC 64 MCU supported
Two LEDs, one RGB LED, two user buttons, one reset button
Potentiometer
Mode selection button
Status LED for KitProg3
MicroSD Cardholder
