Infineon Technologies PROFET™+ 2 BTS7080 12V Evaluation Board

Infineon Technologies PROFET™+ 2 BTS7080 12V Evaluation Board (SHIELDBTS70802EPZTOBO1) is a demonstration platform for the PROFET+ 2 Protected High-Side Power Switches. This Evaluation Board is designed to handle all devices in the PROFET+2 12V Grade0 family, and includes the BTS7080-2EPZ PROFET+2 device in a PG-TSDSO-14 package. The Evaluation Board is capable of driving resistive, capacitive, and/or inductive loads.

Features

BTS7080-2EPZ PROFET+2 device in a PG-TSDSO-14 package
ReverseON for low power dissipation in Reverse Polarity
Absolute and dynamic temperature limitation with controlled reactivation
Overcurrent protection (tripping) with Intelligent Latch
Undervoltage shutdown
Overvoltage protection with external components
Proportional load current sense
Open Load in ON and OFF state
Short circuit to ground and battery

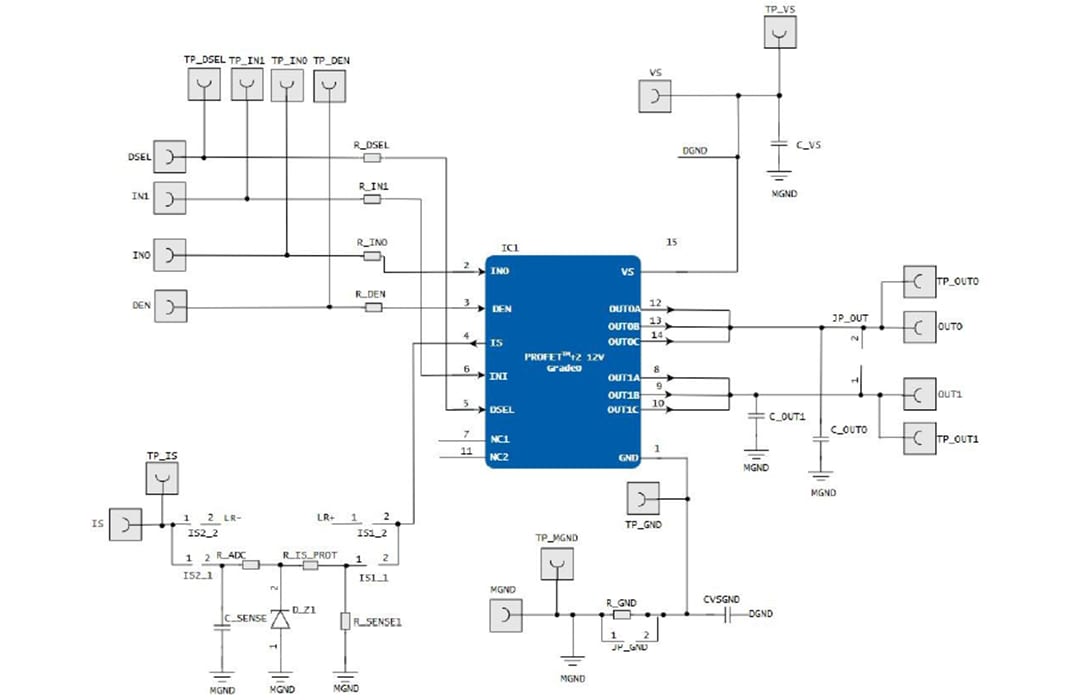

Schematic
