Infineon Technologies OPTIREG™ TLF35584QVHSx PMICs

Infineon Technologies OPTIREG™ TLF35584QVHSx PMICs are highly efficient Power Management Integrated Circuits (PMICs) with a multiple output system supply for safety-relevant applications. These PMICs supply 3.3V-μC to 5V-μC, transceivers, and sensors by an efficient and flexible pre-/post-regulator concept over a wide input voltage range. The TLF35584QVHSx PMCIs function with serial step up and step down pre-regulator for a wide input voltage range from 3V to 40V. These PMICs perform efficiently with a low overall power loss and provide easy realization of ASIL-D together with various Microcontrollers (μCs), enabled by multiple safety features. These PMICs are suitable for applications in electric power steering, battery management, transmission, and engine management domain control.

Features

High efficient Power Management Integrated Circuit (PMIC)
Low drop post regulator 5V/200mA for communication supply (QCO)
Low drop post regulator 5V/600mA (TLF35584QVHS1) or 3.3V/600mA (TLF35584QVHS2) for µC supply (QUC)
Voltage reference 5V ±1% for ADC supply, 150mA current capability (QVR)
Two trackers for sensor supply following voltage reference 150mA current capability each (QT1 and QT2)
Standby regulator 5V/10mA (TLF35584QVHS1) or 3.3V/10mA (TLF35584QVHS2) (QST)

Provides enable, sync out signal and voltage monitoring for an optional external post regulator for core supply
Independent voltage monitoring block and error pin monitoring
Configurable window and functional watchdog
16-bit SPI, interrupt, and reset function
Safe state control with two safe state signals with programmable delay
Grade 0 supporting junction temperature up to 175°C
Green product (RoHS compliant) potential applications

Applications

Electric power steering
Battery management

Transmission
Engine management domain control

Infineon Technologies OPTIREG™ TLF35584QVHSx PMICs

Features

Applications

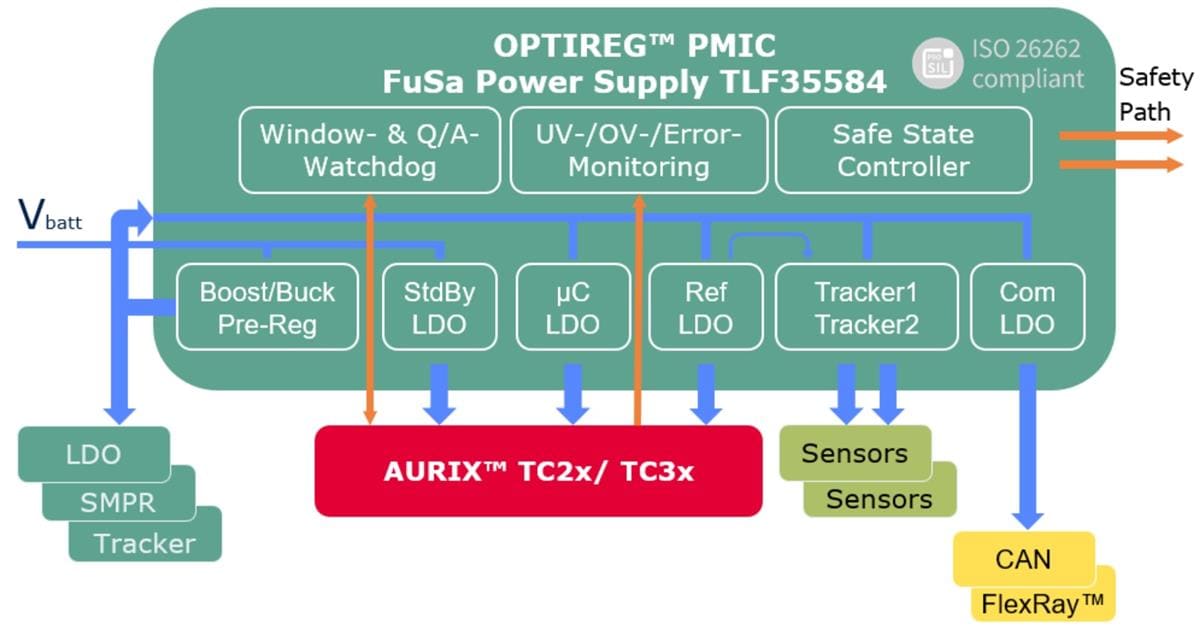

Application Diagram
