Infineon Technologies OPTIGA™ TPM SLB 9672 RPI Evaluation Board

Infineon Technologies OPTIGA™ TPM SLB 9672 RPI Evaluation Board allows an easy evaluation of the OPTIGA SLB 9672 TPM on a Raspberry Pi platform. The Infineon Technologies board connects to all 40-pin GPIO Raspberry Pi boards, simplifying the evaluation and integration process. Infineon provides a user-friendly GUI-based software tool, the OPTIGA TPM Explorer, to explore the board’s features and use cases without extensive product knowledge. Additionally, the availability of ready-to-use code examples on GitHub makes this board a valuable asset for any IoT developer.

Features

Standard Raspberry Pi HAT, compatible with Raspberry Pi 40-pin header
Conforms with the Raspberry Pi HAT standard
Serial peripheral interface (SPI)
3V or 1.8V power supply
Reset input from Raspberry Pi board

Intuitive quick-start guide including all necessary software, tools, and documentation
Simple integration with Linux-based OS thanks to easy-to-understand materials and sample codes on GitHub
“Plug-and-play” solution without any configuration changes to a normal Raspberry Pi OS

Applications

Networking equipment
Servers
Medical devices
Programmable Logic Controllers (PLC)

Industrial control and automation
Surveillance cameras
Smart buildings

Infineon Technologies OPTIGA™ TPM SLB 9672 RPI Evaluation Board

Features

Applications

Videos

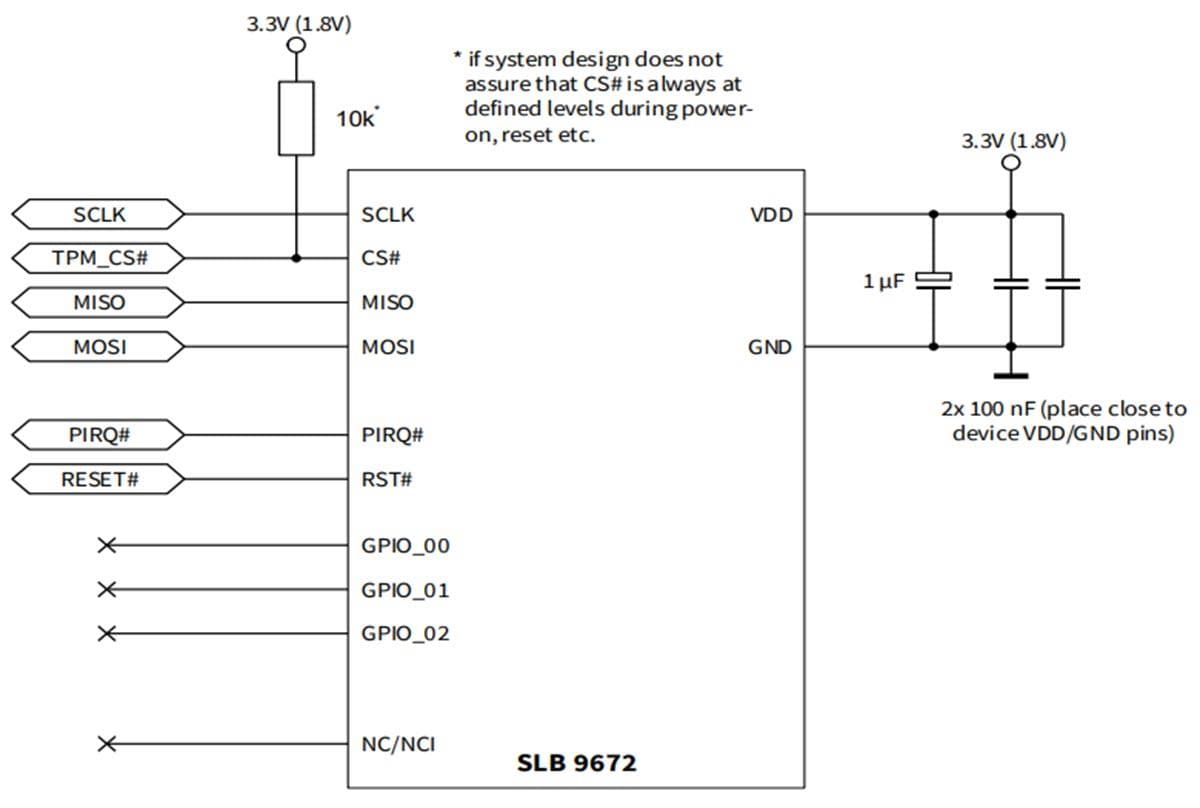

Typical Schematic
