Infineon Technologies MOTIX™ TLE9185QX/TLE9185QX V33 BLDC Driver ICs

Infineon Technologies TLE9185QX/TLE9185QX V33 BLDC Driver ICs are three-phase driver ICs with integrated power supply and support features. The BLDC Driver ICs feature a 3.3V (TLE9185QX V33) or a 5V (TLE9185QX) low-dropout voltage regulator, three half-bridges for BDLC motor control, one current sense amplifier, and one 32 bit SPI interface.

The TLE9185QX V33 device includes diagnostic and supervision features and is intended to operate with 3.3V microcontrollers. In comparison, the TLE9185QX consists of diagnostic and supervision features and is designed to work with 5.0V microcontrollers.

Features

Low-drop voltage regulator 3.3V (TLE9185QX V33), 5V (TLE9185QX), 250mA for main supply
Three half-bridge gate drivers for external N-channel MOSFETs
Adaptive MOSFET gate control
One low-side capable current sense amplifier (CSA) with configurable gain for protection and diagnosis
Configurable wake-up sources

Six PWM inputs with up to 25kHz PWM frequency
32bit serial peripheral interface (SPI) with cyclic redundancy check (CRC)
Periodic cyclic wake in normal mode, stop mode, and sleep mode
Drain-source monitoring and open-load detection, configurable time-out, and window watchdog
Overtemperature and short circuit protection features

Applications

Auxiliary pumps (fuel, water, etc.)
Blower motor
Engine cooling fan

Sunroof module
Transfer case

Infineon Technologies MOTIX™ TLE9185QX/TLE9185QX V33 BLDC Driver ICs

Features

Applications

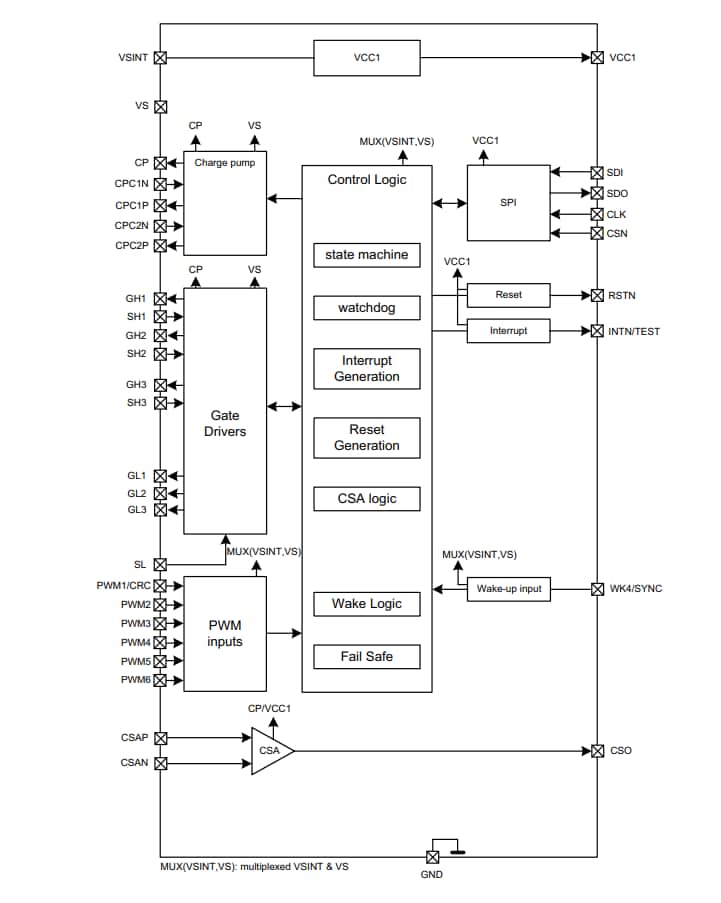

Block Diagram
