Infineon Technologies KP464XTMA1 & KP466XTMA1 Pressure Sensors

Infineon Technologies KP464XTMA1 and KP466XTMA1 Pressure Sensors are miniaturized digital absolute pressure sensors engineered for performance and precision. The Infineon Technologies KP464XTMA1 and KP466XTMA1 feature micromachining and a seamlessly integrated signal conditioning circuit that utilizes a cutting-edge capacitive sensing principle. The sensors can convert physical pressure into a 10-, 12-, or 14-bit digital value. Not only does it transmit this vital information through the SPI interface, but it also boasts an integrated temperature sensor on the chip, enabling the transmission of precise temperature data in response to SPI commands.

Features

High accuracy pressure sensing (±1.0kPa), pressure range 60kPa to 165kPa
Operating ambient temperature range -40°C to 125°C
Best-in-class low power consumption with dedicated power-down mode for energy saving

10-, 12- or 14-bit resolution pressure and temperature values via SPI Interface
Integrated signal path diagnosis features
Green, small 4.5mm x 5.1mm 8-pin DFN package

Applications

Automotive barometric air pressure sensor (BAP)
Automotive manifold air flow sensor (MAF)
Automotive battery monitoring system (BMS)
Automotive seat comfort system

Industrial control
Weather stations
Altimeters

Infineon Technologies KP464XTMA1 & KP466XTMA1 Pressure Sensors

Features

Applications

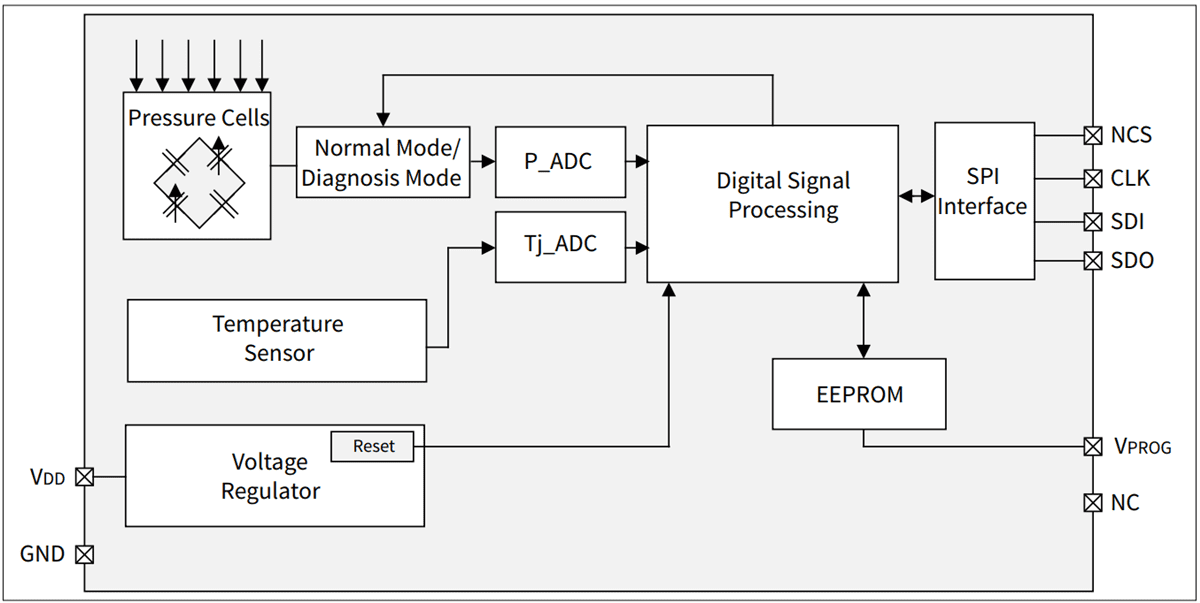

Block Diagram
