Infineon Technologies KIT_T2G-B-H_EVK TRAVEO™ T2G Body High Eval Kit

Infineon Technologies KIT_T2G-B-H_EVK TRAVEO™ T2G Body High Evaluation Kit allows users to evaluate and develop applications using the CYT4BF Body microcontroller. The TRAVEO T2G CYT4BF family is created for automotive applications. The CYT4BF is an accurate programmable embedded system-on-chip, integrating up to two 350MHz Arm® Cortex®-M7 as the primary application processor and a 100MHz Arm® Cortex®-M0+.

ModusToolbox™ software supports application development using the TRAVEO T2G Body High evaluation kit by delivering a board support package (BSP) and validated code examples to get started.

Features

Power:
- KitProg3 USB Micro-B interface (Bus Power)
- DC Power Jack (recommended 12V, min 1A)
Connectors:
- Arm 10-pin SWD/JTAG program and debug header
- Arduino compatible connectors
- Expansion header
- CAN connector
- RJ45 connector
- 2x interface connectors
- SMIF dual header compatible with the Digilent Pmod connector

Gigabit Ethernet physical layer (PHY) transceiver
Quad SPI Flash memory
CAN FD transceiver
2x user buttons, 3x user LEDs
Reset button
Potentiometer

Kit Contents

TRAVEO T2G Body High evaluation board
USB Type-A to Mirco-B cable
12V/3A DC power adapter with additional blades

6x jumper wires (5″ each)
Quick start guide

Infineon Technologies KIT_T2G-B-H_EVK TRAVEO™ T2G Body High Eval Kit

Features

Kit Contents

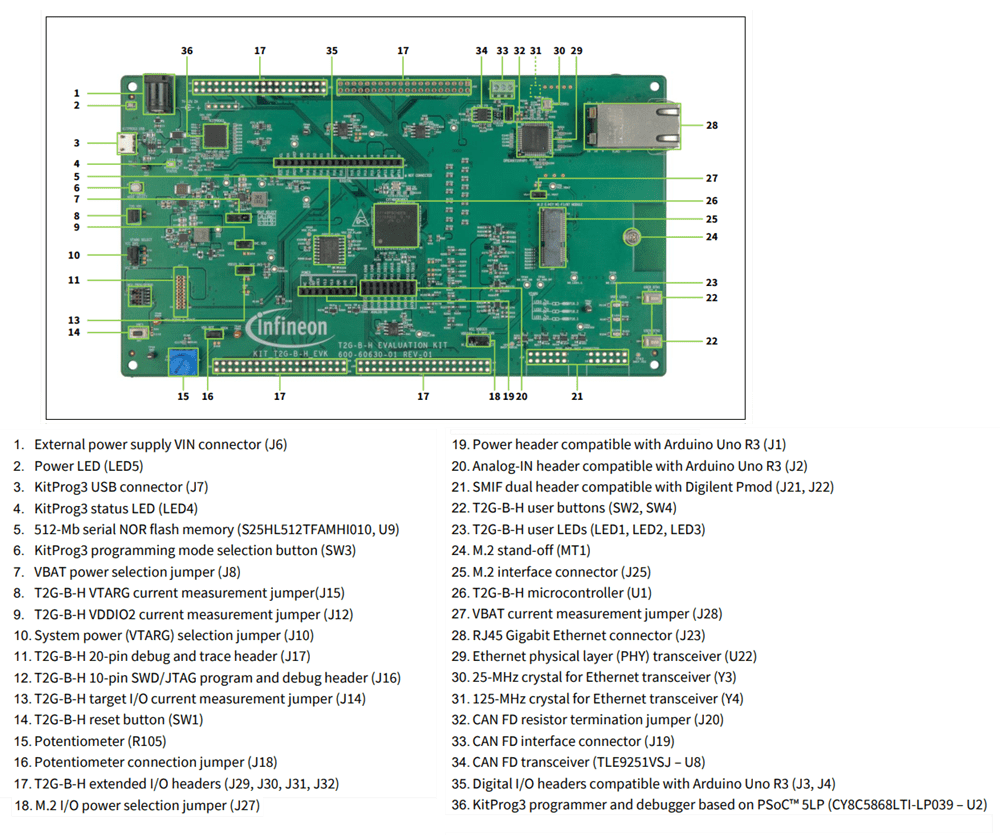

Board Overview
