Infineon Technologies KIT_LGCAP_BOM006 Evaluation Board

Infineon Technologies KIT_LGCAP_BOM006 Evaluation Board is a supporting design for the LVD scalable power demo board platform. The Infineon Technologies KIT_LGCAP_BOM006 is a versatile interconnection platform, integrating leaded capacitors to empower the DC bus that fuels the power half-bridges. The board has various lab setups for a DC capacitor bank, boasting an impressive range of up to 250V.

Features

Designed to seamlessly integrate with the LVD scalable power demo board platform
Offers a robust interconnection platform for leaded capacitors, ensuring efficient and reliable power distribution for the DC bus
Facilitates the smooth operation of power half-bridges, optimizing power flow and management in the system

Suitable for a wide range of lab setups, accommodating diverse applications that require a DC capacitor bank
Capable of handling voltages up to 250V, making it ideal for demanding power-related experiments and projects

Applications

Prototyping forklifts and LEVs (low-speed cars, e-scooters, 3-wheelers, golf cars)
BPA BLDC motor drives
Cordless power tools

Infineon Technologies KIT_LGCAP_BOM006 Evaluation Board

Features

Applications

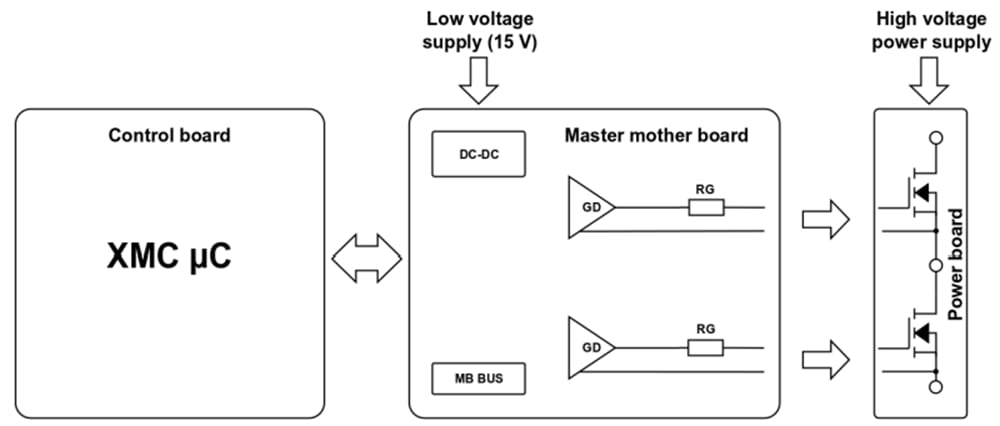

Block Diagram
