Infineon Technologies ISOFACE™ Digital Isolators

Infineon Technologies ISOFACE™ Digital Isolators are based on Coreless Transformer (CT) technology and provide robust high-voltage isolation for various applications. These digital isolators continue replacing the traditional galvanic isolation transformer and optoisolator as the predominant functional and safety isolation form. The ISOFACE™ digital isolators are dual-channel isolators that support data rates of up to 40Mbps and operate at -40°C to 125°C temperature range. Features include low current consumption, high isolation, signal robustness, and accurate timing performance. These isolators are used in servers, telecom and industrial SMPS, industrial automation systems, medical equipment, motor drives, and solar inverters.

Features

Two data channels in an NB DSO-8 package
Low current consumption
High isolation and signal robustness
Accurate timing performance
Variants with:
- Default high and low output state
- Fixed or variable input thresholds
Efficiency gain and PCB space savings
Safe and reliable operation
Signal integrity
Regulatory safety

Higher system efficiency in simplified and high power density designs
Reliable system operation in noisy environments with a trusted isolation solution
Stable system operation with predictable data communication
Simplified system safety approval EN and CQC certification (IEC 62368-1, IEC 60601-1, IEC 61010-1, and GB4943.1)

Applications

Server, telecom, and industrial SMPS
Industrial automation systems
Medical equipment

Motor drives
Solar inverters

Infineon Technologies ISOFACE™ Digital Isolators

Features

Applications

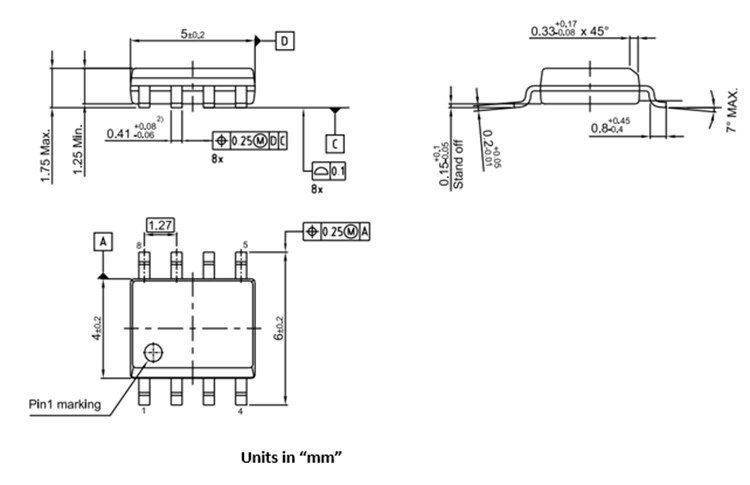

Mechanical Drawing
