Infineon Technologies IR3823AMTRPBF Buck Regulator

Infineon Technologies IR3823AMTRPBF Buck Regulator is a 3A easy-to-use, fully integrated synchronous regulator. This buck regulator uses a compensation-free fast Constant-On-Time (COT) control scheme, that simplifies the design effort. The IR3823A regulator is offered in a small 3.5mm x 3.5mm PQFN package with excellent thermal performance. This regulator includes an internal low dropout voltage regulator that allows operation with a single supply. Features include protection functions such as pre-bias start-up, thermally compensated current limit, over-voltage and under-voltage protection, and thermal shutdown to give required system-level.

The IR3823AMTRPBF regulator offers a programmable switching frequency range from 600kHz to 2MHz. Applications include server applications, storage, telecom and datacom, distributed Point-of-Load power architectures, and artificial intelligence applications.

Features

Single 4.3V to 17V application
Precision reference voltage (0.6V ±0.5%)
Enhanced fast COT engine stable with ceramic output capacitors and no external compensation
Optional forced continuous conduction mode or diode emulation for enhanced light load efficiency
Programmable switching frequency range from 600kHz to 2MHz
Enable input with voltage monitoring capability and power good output
Monotonic start-up with two selectable soft-start times and enhanced pre-bias start-up

Thermally compensated internal over current protection
Thermal shut-down
-40°C < T_j < 125°C operating junction temperature
3.5mm x 3.5mm PQFN
Halogen-free and RoHS compliant

Applications

Server
Storage

Telecom and datacom
Distributed Point of Load power architectures

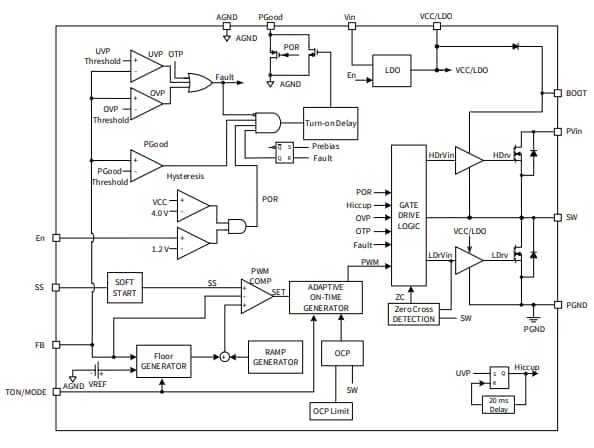

Block Diagram
