Infineon Technologies EVALIHR5IPBAV1 Evaluation Board

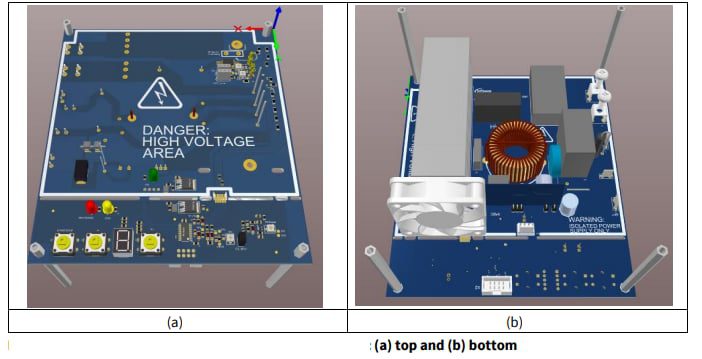

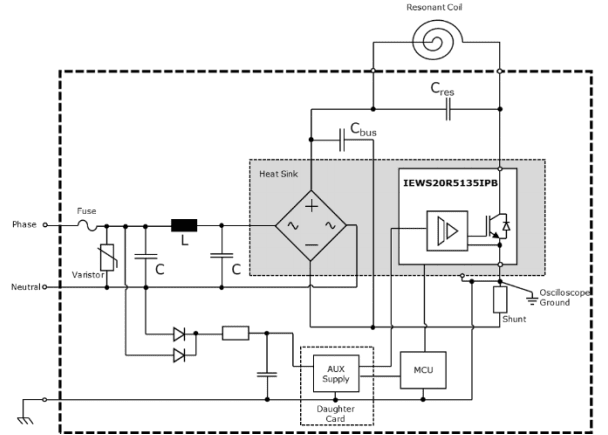

Infineon Technologies EVALIHR5IPBAV1 Evaluation Board is designed as a universal test platform for the IEWS20R5135IPB IGBT. This evaluation board allows evaluation of the advantages provided by the intelligent protection mechanisms. The EVALIHR5IPBAV1 eval board implements a SEPR converter for induction heating application. This demonstrates the functionalities of the IEWS20R5135IPB during the typical operating conditions of an induction heating cooker. This eval board has an optimized PCB design that guarantees clean signals and reproducible behavior of the device in all operating conditions.
