Infineon Technologies EVAL_TOLL_72VDC_2KW Evaluation Board

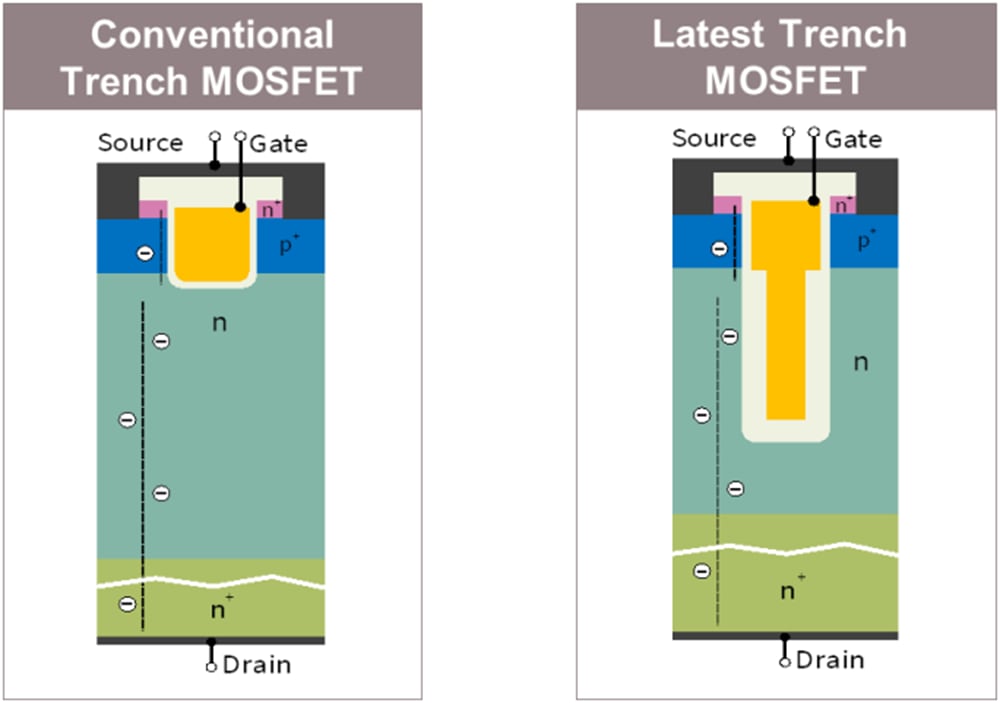

Infineon Technologies EVAL_TOLL_72VDC_2KW Evaluation Board uses OptiMOS™ 6 120V power MOSFET technology. The Infineon Technologies EVAL_TOLL_72VDC_2KW can be used for battery-powered 60V to 84V BLDC motor drives, which are ideal for empowering high-power tools. The board is paired with the Infineon XMC1300 drive card KIT_XMC1300_DC_V1 (or higher). It is also equipped with firmware.

Features

  • Single MOSFET at each leg of the inverter
  • Standard 32-pin male-female connector to interface power board and XMC1300 drive card
  • 72V nominal input voltage
  • Capable of both block commutation control and FOC control
  • 12.0V and 5.0V on-board power supplies for gate driver ICs and microcontroller, respectively
  • High efficiency
  • Excellent thermal management
  • Modular design – power board and controller card

Applications

  • Gardening tools
  • Motor control and drives

Target applications

Infineon Technologies EVAL_TOLL_72VDC_2KW Evaluation Board
