Infineon Technologies EVAL_PMG1_B1_DRP Kit

Infineon Technologies EVAL_PMG1_B1_DRP Kit is designed for the EZ-PD™ PMG1-B1 USB Power Delivery (PD) Microcontroller (MCU) with an integrated buck-boost battery charger. The EZ-PD PMG1-B1 is intended for battery-powered applications that sink or source power through a USB Type-C™ port and require an MCU to apply product features. The supported applications include cordless power tool chargers, wireless speakers, and portable electronics.

The Infineon EVAL_PMG1_B1_DRP Kit can be utilized to sink up to 100W (20V @ 5A) and source up to 27W (9V @ 3A). Additionally, the kit can be employed to charge 2- to 5-cell batteries with the ability to customize the battery charging algorithm based on customer necessities.

Features

Supports USB-C PD 3.1 spec up to 100W
MCU, flash, DCDC buck-boost
Battery charge controller
High voltage protection circuits
Programmability to multiple standards
Customization to multiple standards

Highly configurable value-added features
Support for 2S to 5S cells
SDK to support multiple applications
USB Type-C PD sink, USB Type-C PD DRP
Battery charging

Applications

Industrial and consumer BMS
Smart speakers designs
Vacuum cleaner

Non-stackable BMS solutions
Infineon’s dedicated solutions for low-power

Kit Contents

EVAL_PMG1_B1_DRP kit board
Quick start guide

Required Equipment

A USB Type-C power adapter that can supply power over the USB Type-C port
Electronically marked USB Type-C cable (if not already provided with the USB Type-C power adapter) for connecting the USB Type-C power adapter to the USB Type-C receptacle on the EVAL_PMG1_B1_DRP kit

2- to 5-cell lithium-ion battery that can be charged using EVAL_PMG1_B1_DRP kit
Multimeter and other measurement equipment
A 3mm flat-head screwdriver

Infineon Technologies EVAL_PMG1_B1_DRP Kit

Features

Applications

Kit Contents

Required Equipment

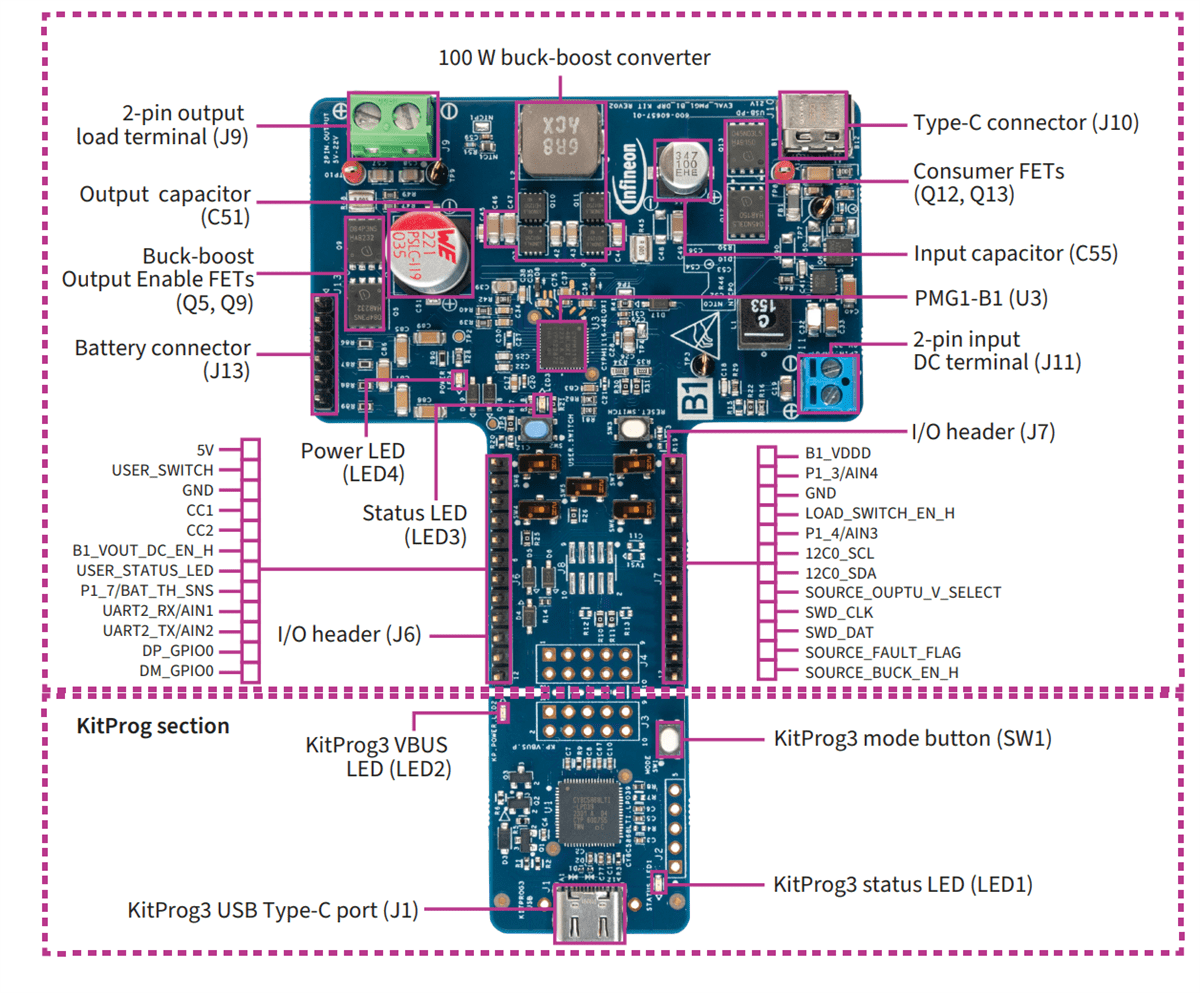

Overview

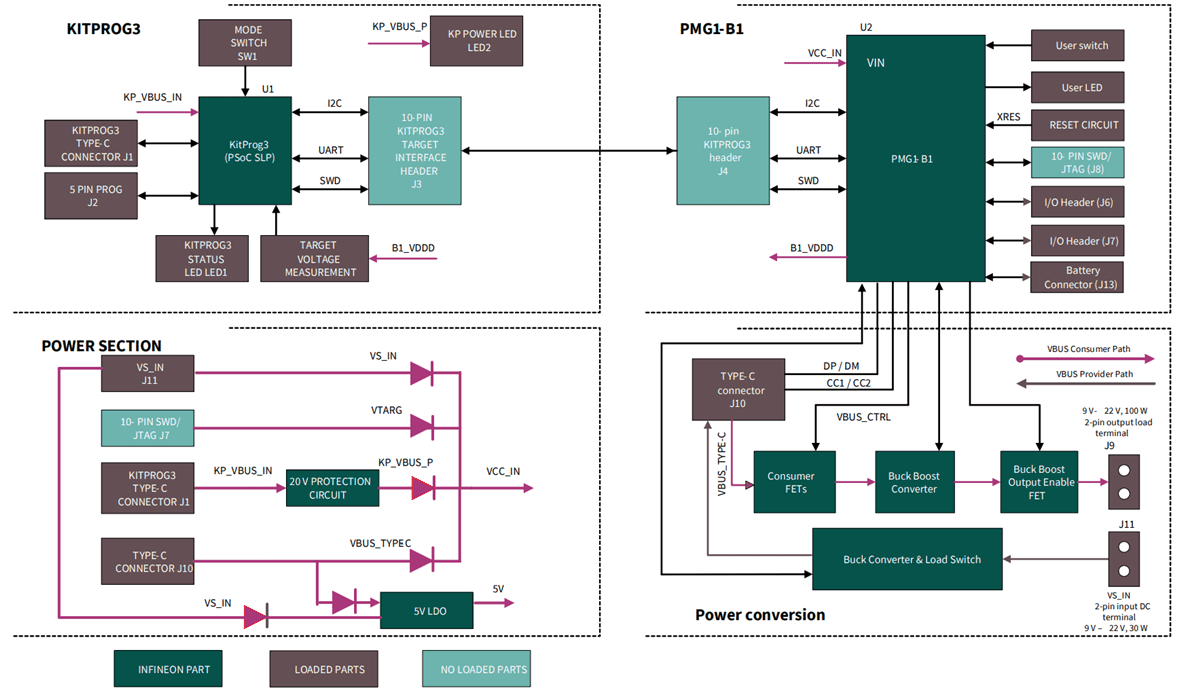

Block diagram
