Infineon Technologies EVAL_MICROIAS MicroIAS Reference Design Board

Infineon Technologies EVAL_MICROIAS MicroIAS Reference Design Board is designed for the use as sensor fusion based alarm system. The small form factor reference board supports the Infineon Alarm System (IAS) software algorithms. The Infineon EVAL_MICROIAS MicroIAS Reference Design Board is based on a QuickLogic microcontroller with fully qualified software.

Features

Easy visualization of all three modes via UART
- Test mode
- Glass break mode: Burglary by breaking the glass
- Intruder mode: Forced intrusion by opening window/door
Adjustable sensitivity for different room sizes
LED indication of detected glass break/intrusion event

Fully tested and qualified software on a small form factor
The evaluation board includes the following products:
- Infineon XENSIVTM microphone IM69D130
- Infineon XENSIVTM pressure sensor DPS310
- Fully tested and qualified software (for QuickLogic Microcontroller)

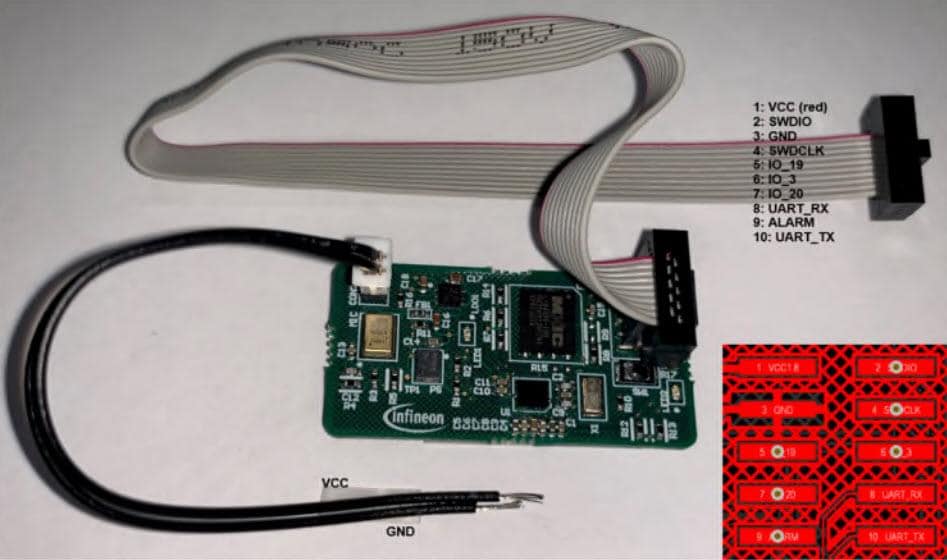

Board Connections

Infineon Technologies EVAL_MICROIAS MicroIAS Reference Design Board
