Infineon Technologies EVAL_ISO_4DIR1400H Evaluation Board

Infineon Technologies EVAL_ISO_4DIR1400H Evaluation Board is designed to develop and evaluate the performance of the ISOFACE™ quad-channel digital isolators. The evaluation board features the 4DIR1400H isolator with three forward channels, one reverse channel, and a low default output. This board enables high power density designs, high noise immunity, and easy alternative sourcing.

Features

Onboard 4DIR1400H ISOFACE™ quad-channel digital isolator
High common mode transient immunity
Wide supply voltage range up to 6.5V_DC
High signaling rate
Default fail-safe output state
Component and system-level certification

Fast switching power switch with high dv/dt
Enables high power density designs, high noise immunity, and easy alternative sourcing
Reliable default output state
Small, easy configuration for evaluation

Applications

Telecom
Servers
Onboard chargers (OBCs)
Industrial automation
Motor control

Industrial SMPS
EV charging
Medical equipment
DC/DC converters
Traction inverters

Videos

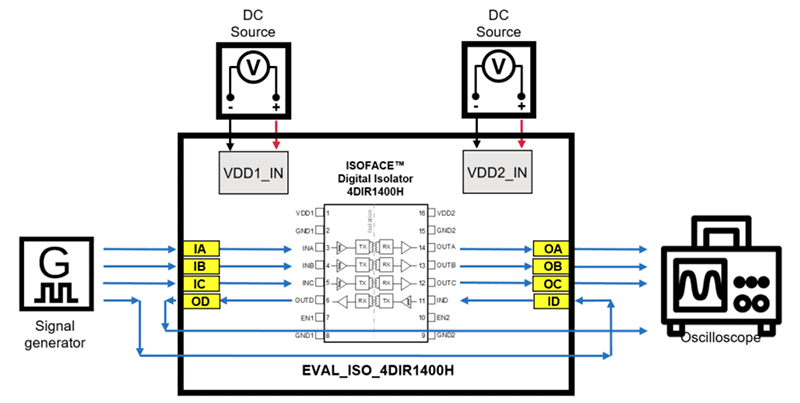

Typical Operation

Infineon Technologies EVAL_ISO_4DIR1400H Evaluation Board
