Infineon Technologies EVAL_HB_2EDL803X_G3C Evaluation Board

Infineon Technologies EVAL_HB_2EDL803X_G3C Evaluation Board evaluates the EiceDRIVER™ 2EDL803x-G3C junction isolated high-side and low-side gate driver IC. The Infineon Technologies EVAL_HB_2EDL803X_G3C features access to each pin through test pins for probing IC characteristics like propagation delay, rise time, fall time, and boot diode. The open-loop buck topology offers flexibility in defining gate drive waveforms.

Features

Evaluation board for EiceDRIVER gate driver IC 2EDL8033-G3C and 2EDL8034-G3C
Independent low- and high-side gate drives
Wide input voltage range from 36V to 75V
Supports evaluation of basic buck topology
Easy access to each pin of the driver

SMA connectors for easy connection to the waveform generator
Large buck inductor to evaluate a wide range of frequencies and duty cycle
Various MOSFET package selection

Applications

Telecom/datacom half- and full-bridge converters
DC motor drives
Class D amplifiers

Infineon Technologies EVAL_HB_2EDL803X_G3C Evaluation Board

Features

Applications

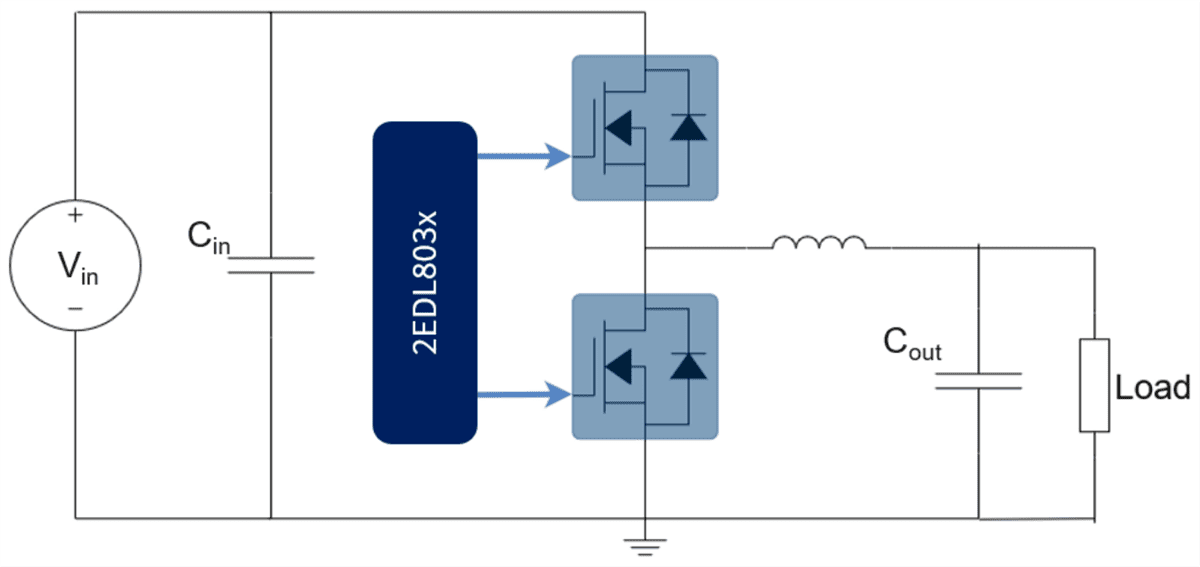

Block Diagram
