Infineon Technologies EVAL_BDPS_DD_TOLG Evaluation Board

Infineon Technologies EVAL_BDPS_DD_TOLG Evaluation Board is a bidirectional switchboard using MOSFETs connected in a drain-to-drain configuration. The Infineon Technologies EVAL_BDPS_DD_TOLG is designed to support an operating voltage (VIN) of 36V to 75V. The board has a continuous output current (IOUT) of 0A to 30A.

Features

  • Operating voltage (VIN) 36V to 75V
  • Continuous output current (IOUT) 0A to 30A
  • Voltage across X4 +/-15V
  • Board size 65mm x 16.5mm

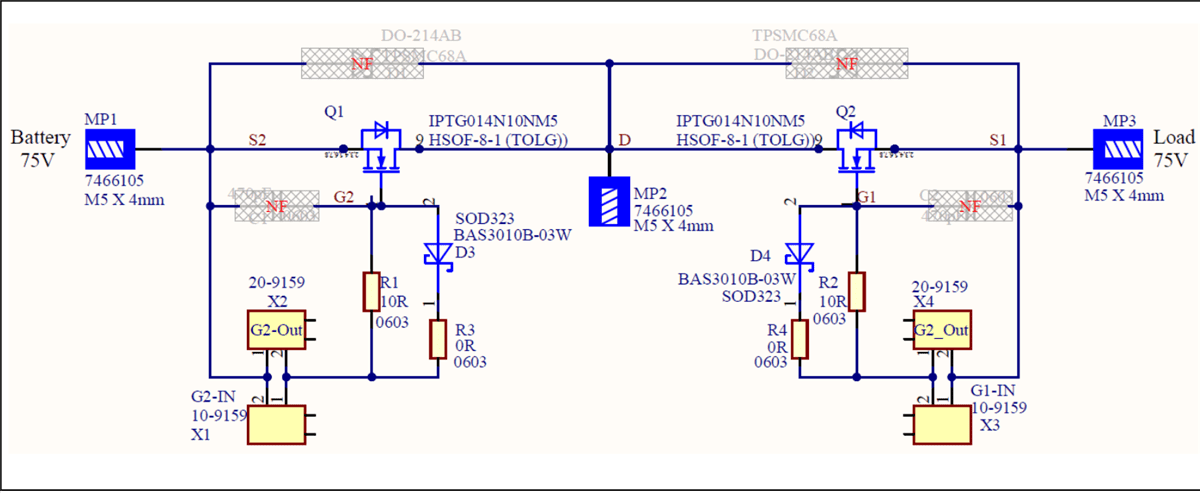

Schematic

Schematic - Infineon Technologies EVAL_BDPS_DD_TOLG Evaluation Board
