Infineon Technologies EVAL_1EDF_G1B_HB_GAN Evaluation Board

Infineon EVAL_1EDF_G1B_HB_GAN Evaluation Board provides a platform to evaluate CoolGaN™ in the universal half-bridge topology. The generic topology can be configured for boost or buck operation, pulse testing, or continuous full-power operation. This makes the Evaluation Board a building block for nearly all converter and inverter applications. The EVAL_1EDF_G1B_HB_GAN Evaluation Board offers an easy, fast setup and test of CoolGAN™. The board has test points allowing easy access to connect signals to an oscilloscope, measuring the switching performance of CoolGaN transistors and gate drivers.

The EVAL_1EDF_G1B_HB_GAN is powered by a single 5V supply input and features a single PWM input intended for connection of a 50Ω pulse generator. The half-bridge circuit board can switch continuous currents of 12A, and peak currents of 35A, hard or soft-switching. Depending on transistor dissipation, the operating frequency can be up to several MHz.

Features

Simple GaN half-bridge with dedicated GaN driver ICs
Capable of multi-MHz switching frequencies
Zero reverse-recovery – can shift between hard or soft-switching
GaN transistors feature topside cooling for high power dissipation

Easy setup and use
Multiple configurations possible
Evaluate high-frequency capabilities of GaN
Evaluate waveforms with low ringing, overshoot, EMI
Enables easy evaluation at multi-kilowatt power levels

Applications

Converter
Inverter
Power supply

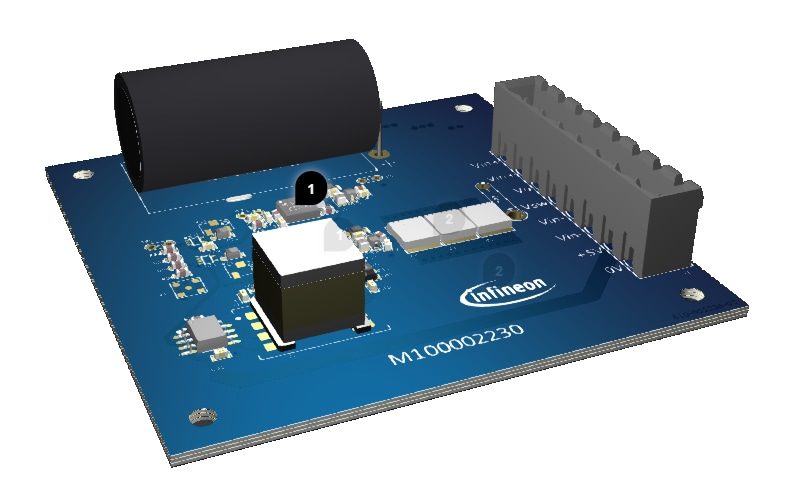

3D Board Model

Infineon Technologies EVAL_1EDF_G1B_HB_GAN Evaluation Board

Interactive 3D Board Model
